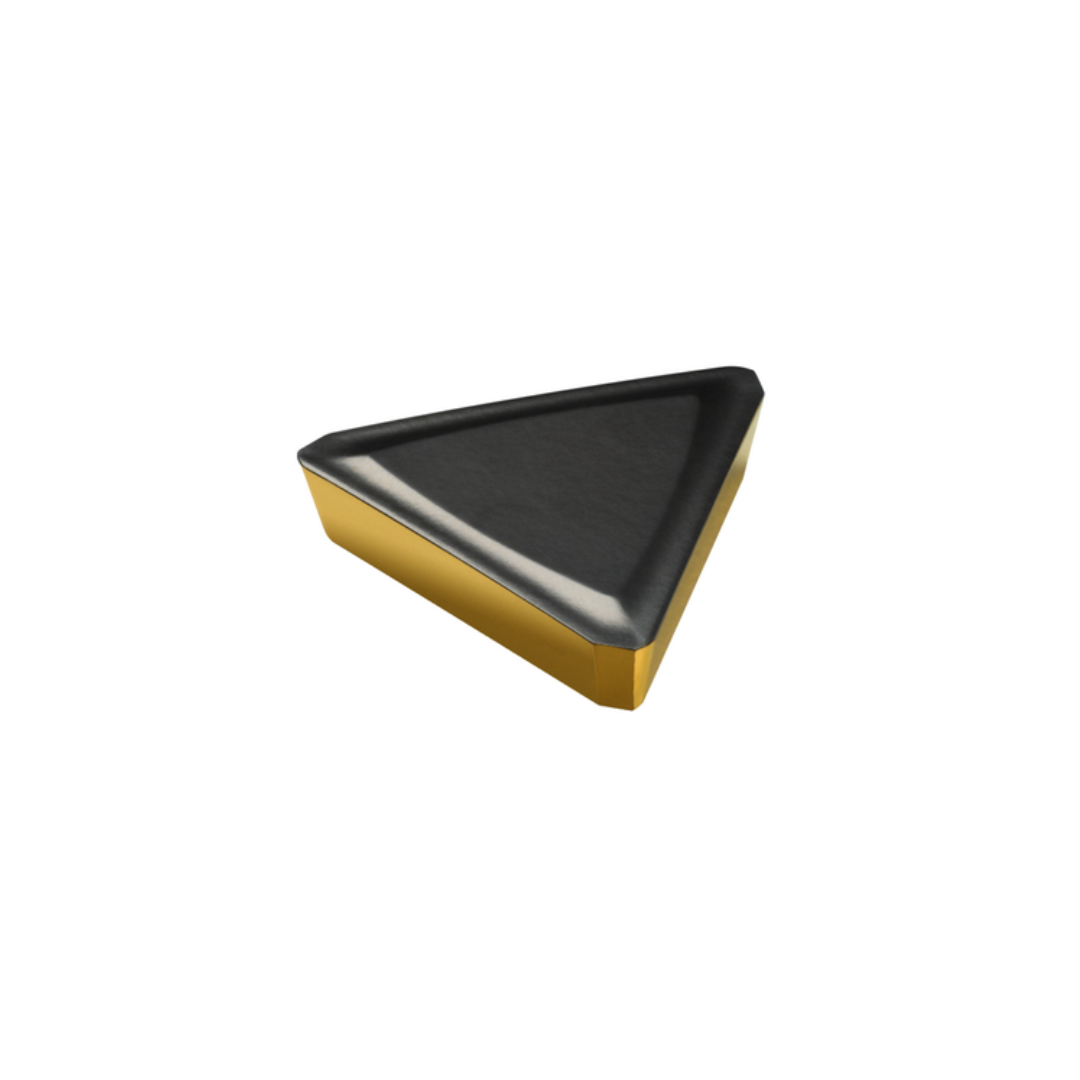

SANDVIK INSERT FOR MILLING TPKR 22 04 PD R-WH 4240

INSERT FOR MILLING BRAND SANDVIK TPKR 22 04 PD R-WH 4240

Workpiece material(s)(TMC1ISO): PMK
Chip breaker(CBMD): WH
Insert size and shape (CUTINT_SIZESHAPE): TP2204PD
Cutting edge count(CEDC): 3
Inscribed circle diameter(IC): 12.7 mm
Insert shape code(SC): Triangular
Cutting edge effective length(LE): 18 mm
Depth of cut maximum (APMX): 18 mm
Corner chamfer(KCH): 44 °
Wiper edge length(BS): 1.2 mm
Major cutting edge angle(KRINS): 90 °
Grade (GRADE):240
Substrate(SUBSTRATE):HC
Coating(COATING): VD TiCN+Al2O3+TiN
Insert thickness(S):4.7625 mm

Note:
1. Price shown is per unit.
2. Minimum order 10 pcs per box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
