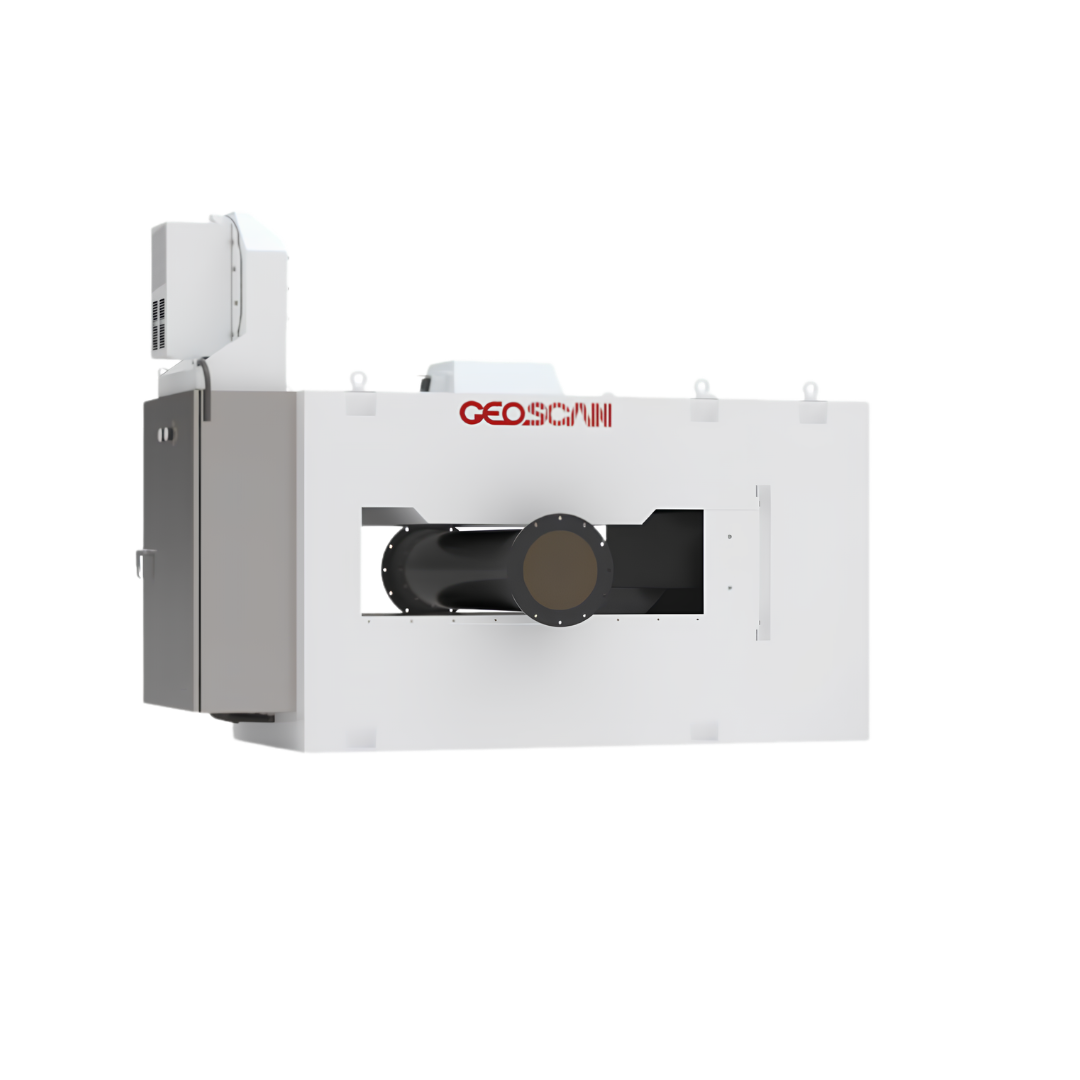

SCANTECH GEOSCAN-Y SLURRY ELEMENTAL ANALYSER FOR MINERALS

GEOSCAN-Y SLURRY ELEMENTAL ANALYSER FOR MINERALS SCANTECH

The GEOSCAN-Y Elemental Analysis System is a compact,
fully integrated, single IP65 rated enclosure, which is installed on the pipe and monitors the full flow of ore and concentrates, without the need for routine samples to be taken and analysed. The GEOSCAN-Y provides real time information, with updates typically every ten minutes, as well as cumulative averages for the current hour, shift or batch.

Typical elements analysed are Calcium, Silicon, Aluminium, Copper, Zinc, Nickel, Iron, Potassium, Titanium, Manganese, Sulphur, Chlorine, Magnesium and Sodium. This premium technology provides real time analysis of the important quality parameters for process control. The analyser is fully contained in the single, heavily shielded enclosure that contains the radioactive source, gamma-ray detection assembly and all electronics. Industry standard communication outputs are available for interface with any plant control system or with Scantech’s SUPERSCAN output display system installed in any suitable remote location.

GEOSCAN-Y Advantages:
• Ultra-compact design. Installs between pipe supports
• Industry-leading proven performance
• Operational at completion of commissioning
• Customised calibration
• Suitable for pipes up to 550mm outside diameter
• Suitability subject to solids concentration
• Ideally suited to horizontal pipes
• Requires short section of suitable pipe
• No sampling necessary during normal operation
• No wear parts = low maintenance
• Optional customised SUPERSCAN console
• Interface to most process control systems
• Proven short paybacks in many applications (bulk diversion, blending, monitoring, feed forward, etc) to optimise plant performance.
