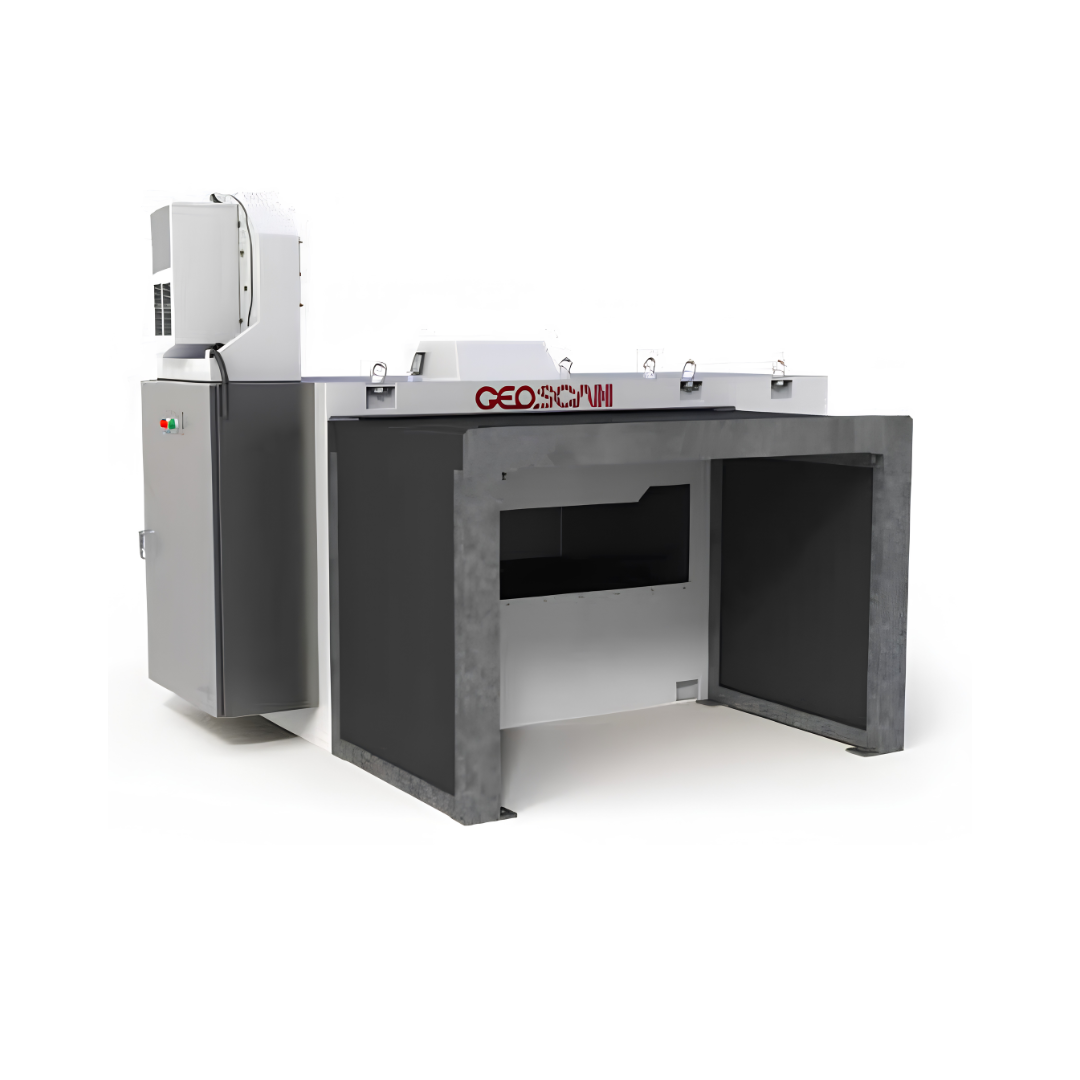

SCANTECH GEOSCAN-M ELEMENTAL ANALYSER FOR MINERALS

GEOSCAN-M ELEMENTAL ANALYSER FOR MINERALS SCANTECH

The GEOSCAN-M Elemental Analysis System is a compact, fully integrated, single IP65 rated enclosure, which is installed on the conveyor and monitors the full of ore and concentrates, without the need for routine samples to be taken and analysed. The GEOSCAN-M provides real time information, with updates typically every two minutes, as well as cumulative averages for the current hour, shift or shipload.

Typical elements analysed are Calcium, Silicon, Aluminium, Copper, Zinc, Nickel, Iron, Potassium, Titanium, Manganese, Sulphur, Chlorine, Magnesium and Sodium.
This premium technology provides real time analysis of the important quality parameters for process control. The analyser is fully contained in the single, heavily shielded enclosure that contains the radioactive source, gamma-ray detection assembly and all electronics. Industry standard communication outputs are available for interface with any plant control system or with Scantech’s SUPERSCAN output display system installed in any suitable remote location.

GEOSCAN-M Advantages:
• Ultra-compact design. Installs between standard idlers
• Industry-leading proven performance
• Operational at completion of commissioning
• Customised calibrations
• Conveyed flows for belts up to 2800mm wide and 1200mm deep
• Static Analysis of bulk bags up to 1200mm high
• No contact with material or conveyor belt
• No sampling necessary during normal during normal operations
• No wear parts = low maintenance
• Optional customised SUPERSCAN console
• Interface to most process control systems
• Proven short paybacks in many applications (bulk diversion, blending, monitoring, feed forward, etc) to optimise plant performance.

*For further inquiries or quotation, please contact us.
