SCANTECH GEOSCAN GOLD PREMIUM QUALITY ON-BELT ELEMENTAL ANALYSER FOR MINERALST

GEOSCAN GOLD PREMIUM QUALITY ON-BELT ELEMENTAL ANALYSER FOR MINERALST SCANTECH

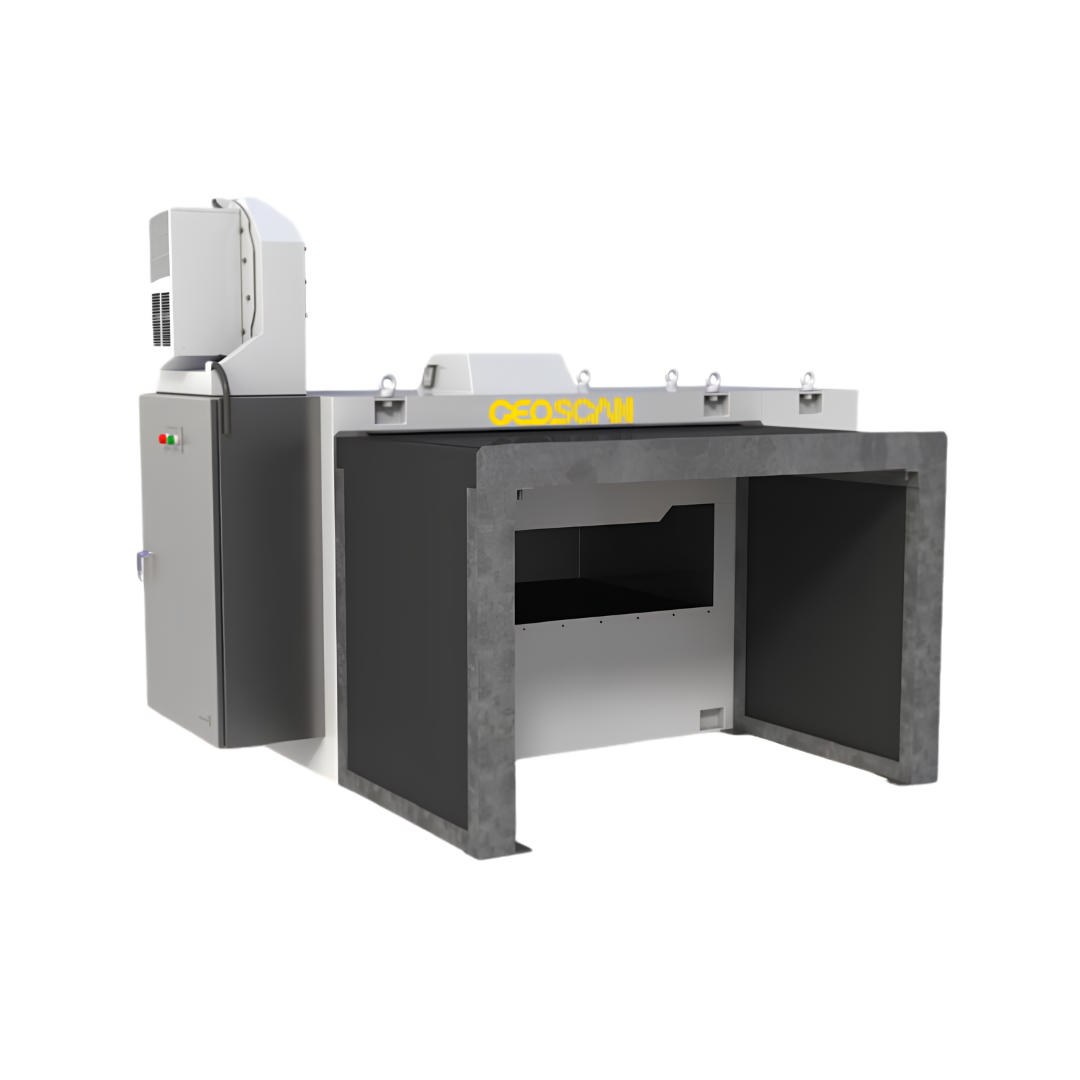

The GEOSCAN GOLD Elemental Analysis System is a compact, fully integrated, single IP65 rated enclosure, which is installed on the conveyor and monitors the full flow of ore and concentrates, without the need for routine samples to be taken and analysed. The GEOSCAN GOLD provides real time information, with updates as often as every 30 seconds with high measurement precisions. Trace elements can be measured to ppm levels with high confidence.

Typical elements analysed are Gold,Copper, Nickel, Mercury, Cadmium, Silver, Titanium, Sulphur and Chlorine. It is used in precious metals, PGEs, base metals, lithium, diamond ores and other critical commodities. This premium technology provides real time analysis of the important quality parameters for process control. The analyser is fully contained in the single,
heavily shielded enclosure that contains the radioactive source, gamma-ray detection assembly and all electronics. Industry standard communication outputs are available for interface with any plant control system or with Scantech’s SUPERSCAN output display system installed in any suitable remote location.

GEOSCAN GOLD Advantages:
• Uniquely measures gold representatively and directly in conveyed flow
• Ultra-compact design. Installs between standard idlers
• Unmatched proven performance
• Operational at completion of commissioning
• Customised calibrations
• For belts up to 2400mm wide and 530mm deep
• No contact with material or conveyor belt
• No sampling necessary during normal operation
• No wear parts = low maintenance
• Optional customized SUPERSCAN console
• Interface to most process control systems
• Proven short paybacks in many applications (bulk diversion, blending, monitoring, feed forward, etc.) to optimise plant performance.
