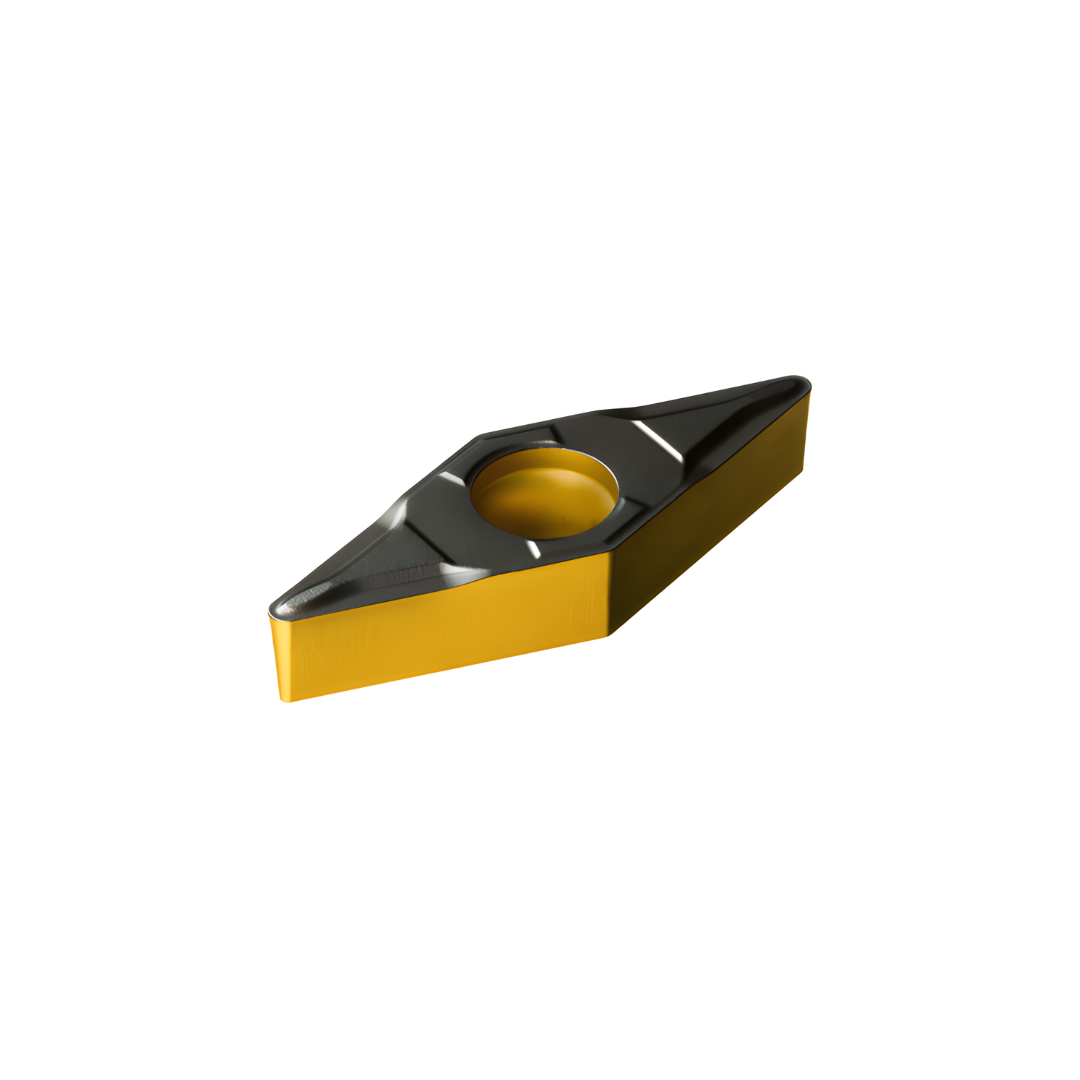

SANDVIK INSERT FOR TURNING VBMT 16 04 08-PF 4425

INSERT FOR TURNING BRAND SANDVIK VBMT 16 04 08-PF 4425

Workpiece material(s)(TMC1ISO): P K
Chip breaker(CBMD): PF
Operation type (CTPT): finishing
Insert mounting style code (metric)(IFS): Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1): 4.4 mm
Insert size and shape (CUTINT_SIZESHAPE): VB1604
Cutting edge count(CEDC): 2

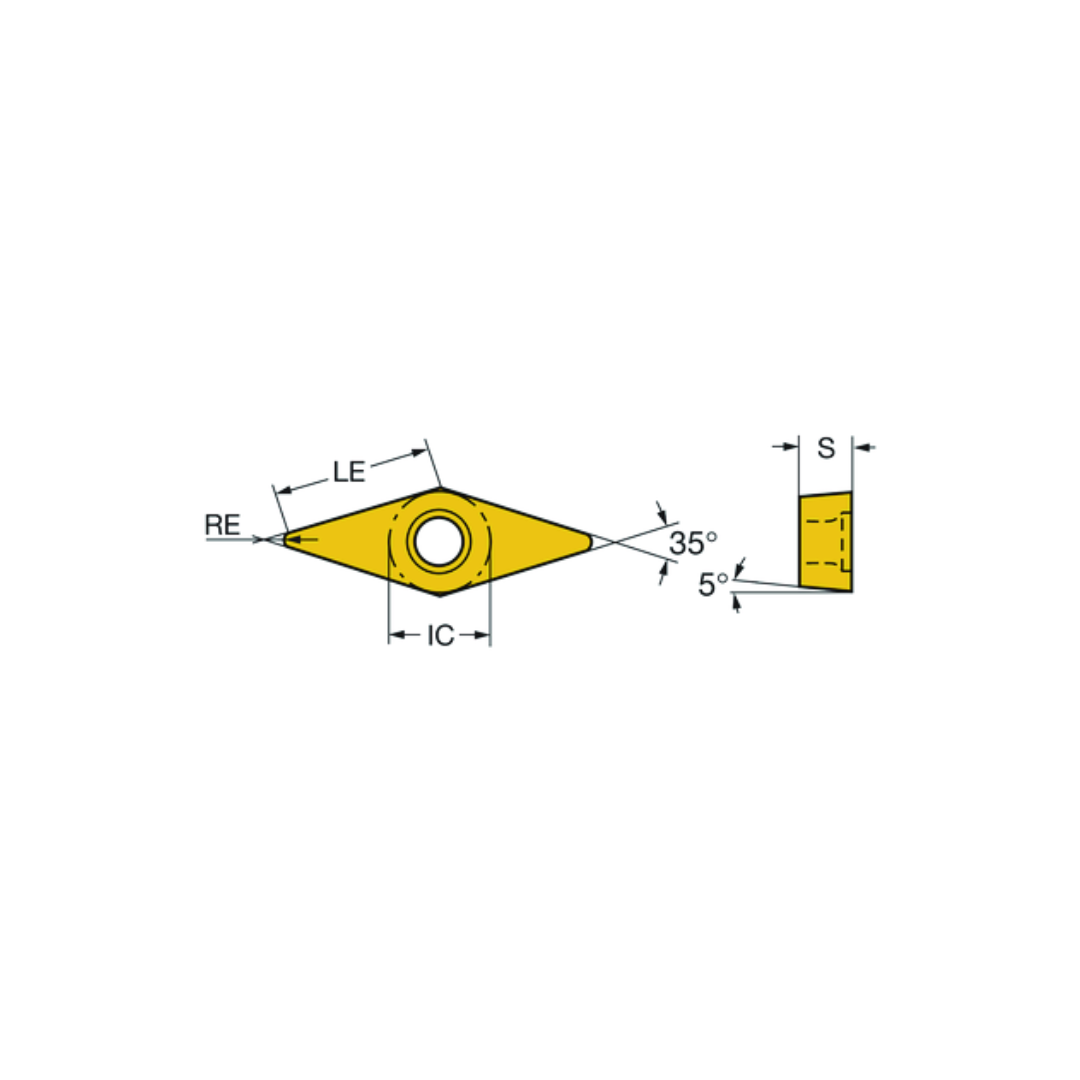

Inscribed circle diameter(IC): 9.525 mm
Insert shape code(SC): Rhombic 35
Cutting edge effective length(LE): 15.8063 mm
Corner radius (RE): 0.7938 mm
Hand (HAND): Neutral
Grade (GRADE): 4425
Substrate(SUBSTRATE): HC
Coating(COATING): CVD TiCN+Al2O3+TiN
Insert thickness(S): 4.7625 mm
Clearance angle major(AN): 5°
Weight of item(WT): 0.0086 kg
Insert seat(SSC_M): 16
Insert seat size code imperial view(SSC_N): 3/8

Note:
1. Price shown is per box (1 box = 10 pcs).
2. Minimum order quantity (MOQ): 1 box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
