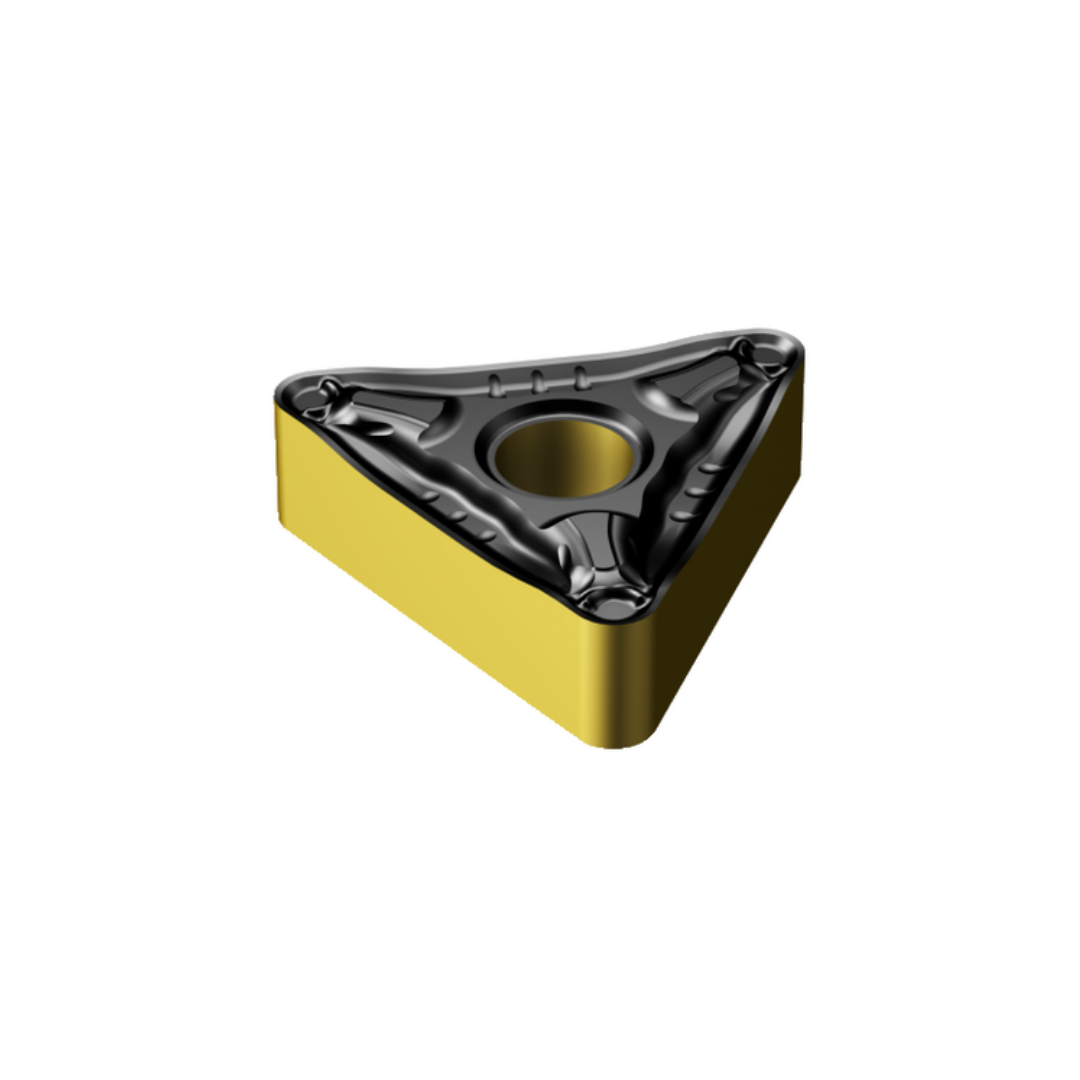

SANDVIK INSERT FOR TURNING TNMG 22 04 04-PM 4425

INSERT FOR TURNING BRAND SANDVIK  TNMG 22 04 04-PM    4425

Workpiece material(s)(TMC1ISO): PK
Chip breaker(CBMD): PM
Operation type (CTPT): pre-machining with demand on surface
Insert mounting style code (metric)(IFS): Cylindrical fixing hole
Fixing hole diameter(D1): 0.203 inch
Insert size and shape (CUTINT_SIZESHAPE): TN2204
Cutting edge count(CEDC): 6

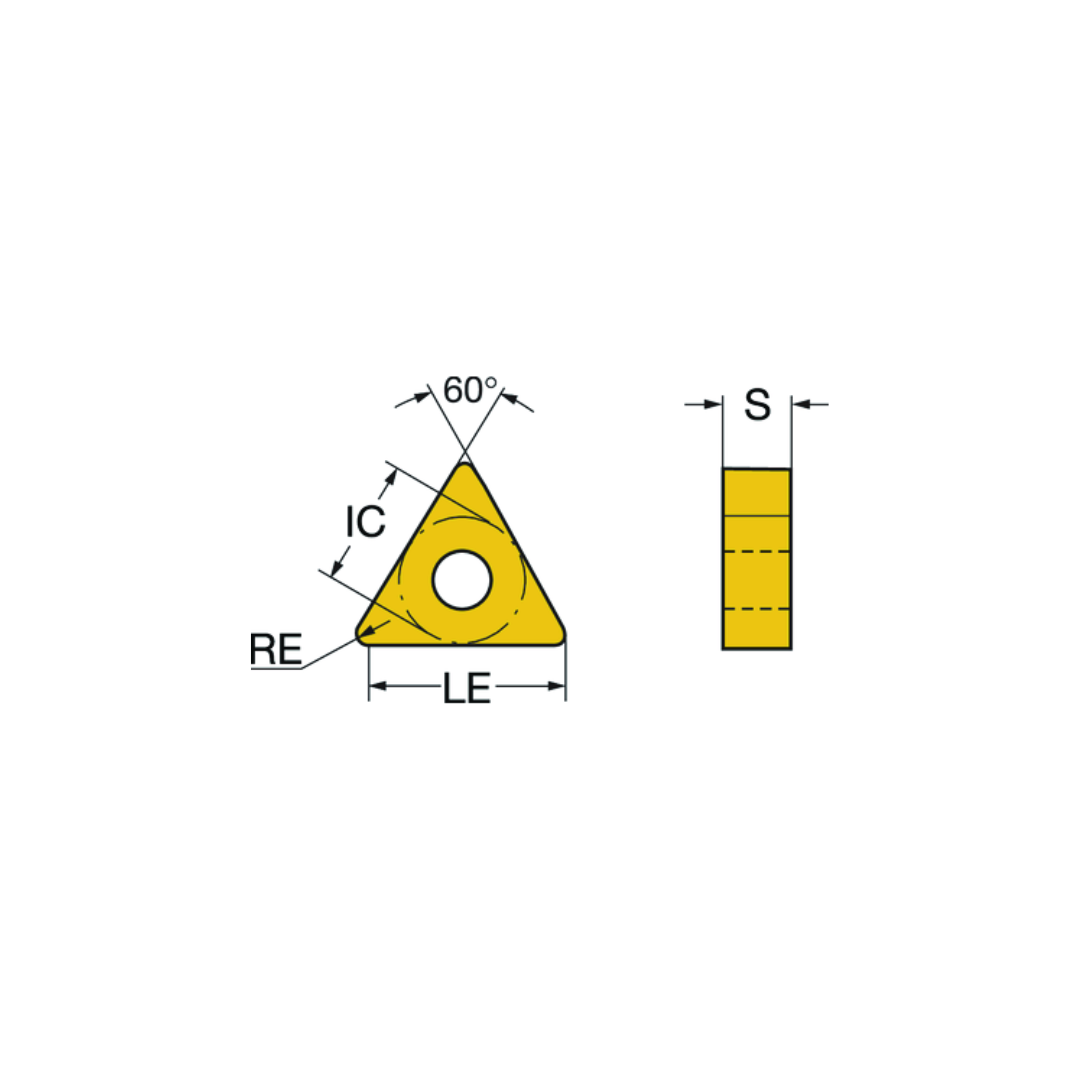

Inscribed circle diameter(IC): 0.5 inch
Insert shape code(SC): Triangular
Cutting edge effective length(LE): 0.8275 inch
Corner radius (RE): 0.0156 inch
Hand (HAND): Neutral
Grade (GRADE): 4425
Substrate(SUBSTRATE): HC
Coating(COATING): CVD TiCN+Al2O3+TiN
Insert thickness(S): 0.1875 inch
Clearance angle major(AN): 0°
Weight of item(WT): 0.0231 lb
Insert seat(SSC_M): 22
Insert seat size code imperial view(SSC_N): 1/2

Note:
1. Price shown is per unit.
2. Minimum order 10 pcs per box.
3. For further inquiries or quotation, please contact us

*Authorized Sandvik Coromant Distributor
