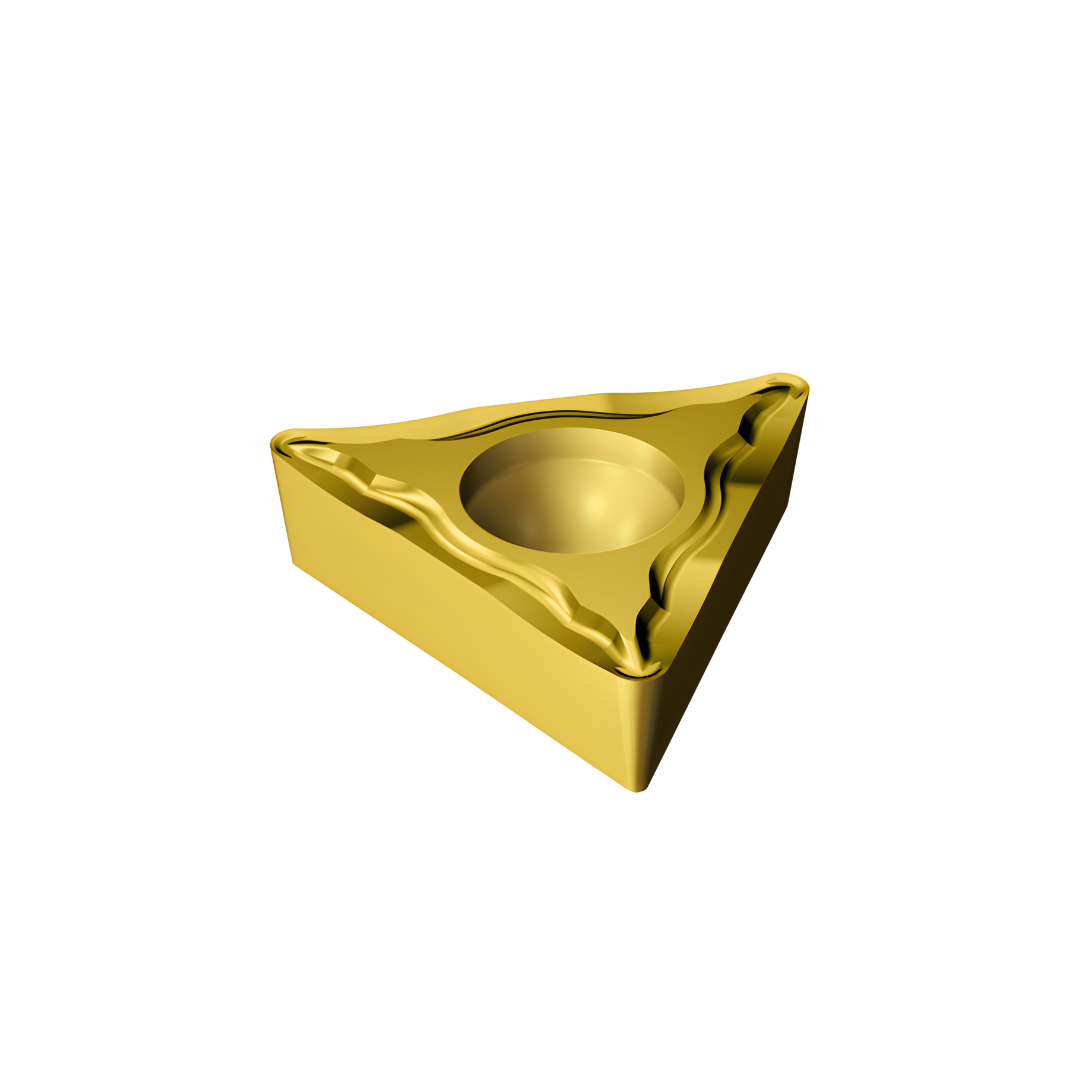

SANDVIK INSERT FOR TURNING TCMT 16 T3 08-UM 235

INSERT FOR TURNING BRAND SANDVIK TCMT 16 T3 08-UM 235

Workpiece material(s)(TMC1ISO): P M
Chip breaker(CBMD): UM
Operation type (CTPT): pre-machining with demand on surface
Insert mounting style code (metric)(IFS): Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1): 4.4 mm
Insert size and shape (CUTINT_SIZESHAPE): TC16T3
Cutting edge count(CEDC): 3

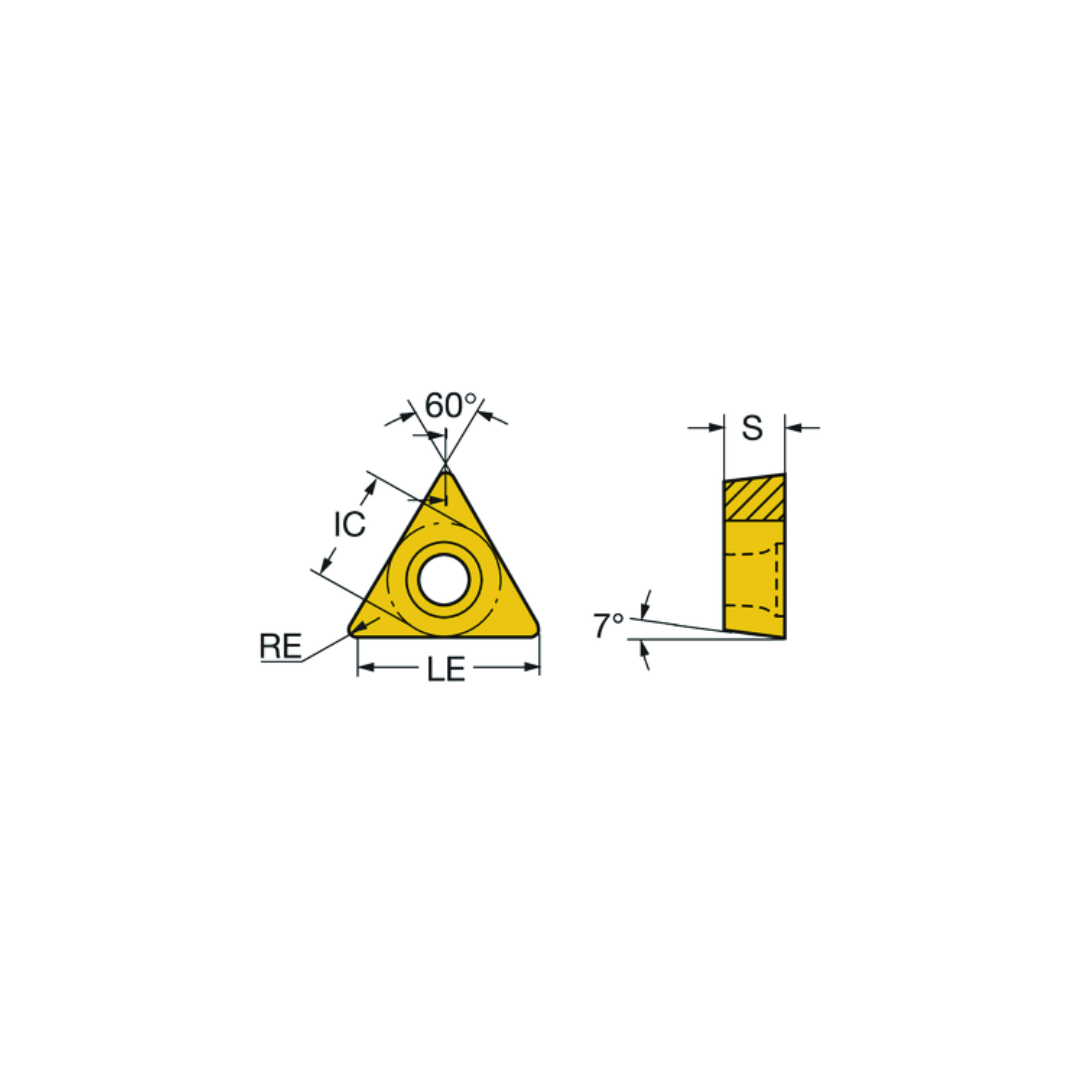

Inscribed circle diameter(IC): 9.525 mm
Insert shape code(SC): Triangular
Cutting edge effective length(LE): 15.6978 mm
Corner radius (RE): 0.7938 mm
Hand (HAND): Neutral
Grade (GRADE): 235
Substrate(SUBSTRATE): HC
Coating(COATING): CVD TiCN+TiN
Insert thickness(S): 3.9688 mm
Clearance angle major(AN): 7°
Weight of item(WT): 0.0044 kg
Insert seat(SSC_M): 16
Insert seat size code imperial view(SSC_N): 3/8

Note:
1. Price shown is per unit.
2. Minimum order 10 pcs per box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
