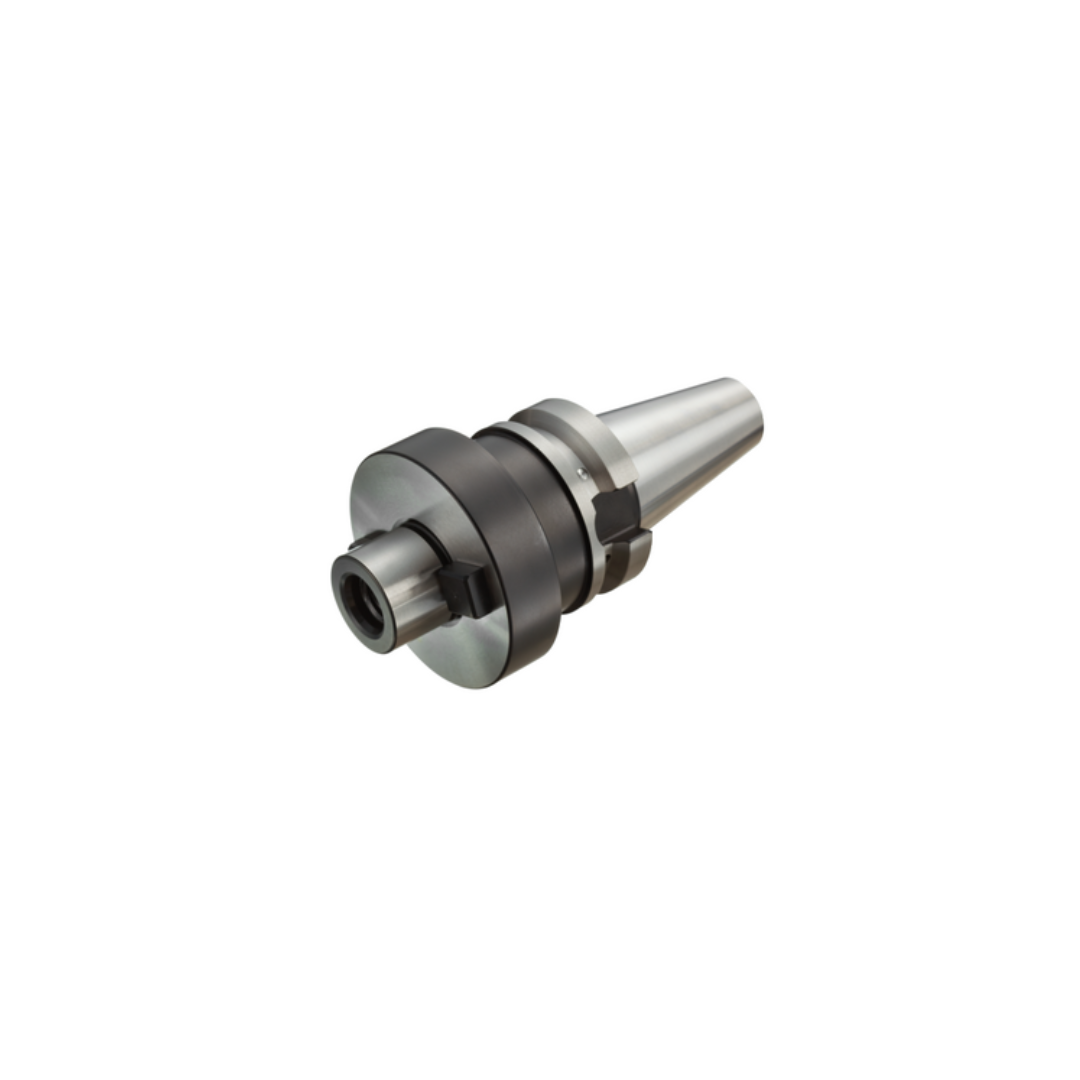

MAS-BT 403 TO ARBOR ADAPTOR BRAND SANDVIK A2B05-40 40 100

MAS-BT 403 TO ARBOR ADAPTOR BRAND SANDVIK A2B05-40 40 100

Connection - machine side(ADINTMS): MAS-BT403 -AD/B central/flange coolant - BT40
Connection - workpiece side (ADINTWS): Arbor -ISO 6462 -A/B/C (4 bolts) -metric: 40S
Coolant entry style(CNSC): decentral over flange and axial
Coolant exit style(CXSC): axial concentric on circle
Coolant pressure(CP): 80 bar
Data chip pocket (DCP): Yes
Data chip pocket size(DCPS): Dia.=10 mm/Height=4,5 mm
Functional diameter(DFC): 44.45 mm
Connection retention knob thread size(CRKS): Metric M16
Connection diameter workpiece side(DCONWS): 40 mm
Kappa (z-axis rot)(KAP): 0°
Functional length(LF): 100 mm
Body diameter(BD_1): 87 mm
Body diameter(BD_2): 63 mm
Body length(LB_1): 100 mm
Body length(LB_2): 100 mm
Body half taper angle(BHTA_1): 0°
Body half taper angle(BHTA_2): 0°
Rotational speed maximum(RPMX): 16,000 1/min
Body material (BMC):Steel
