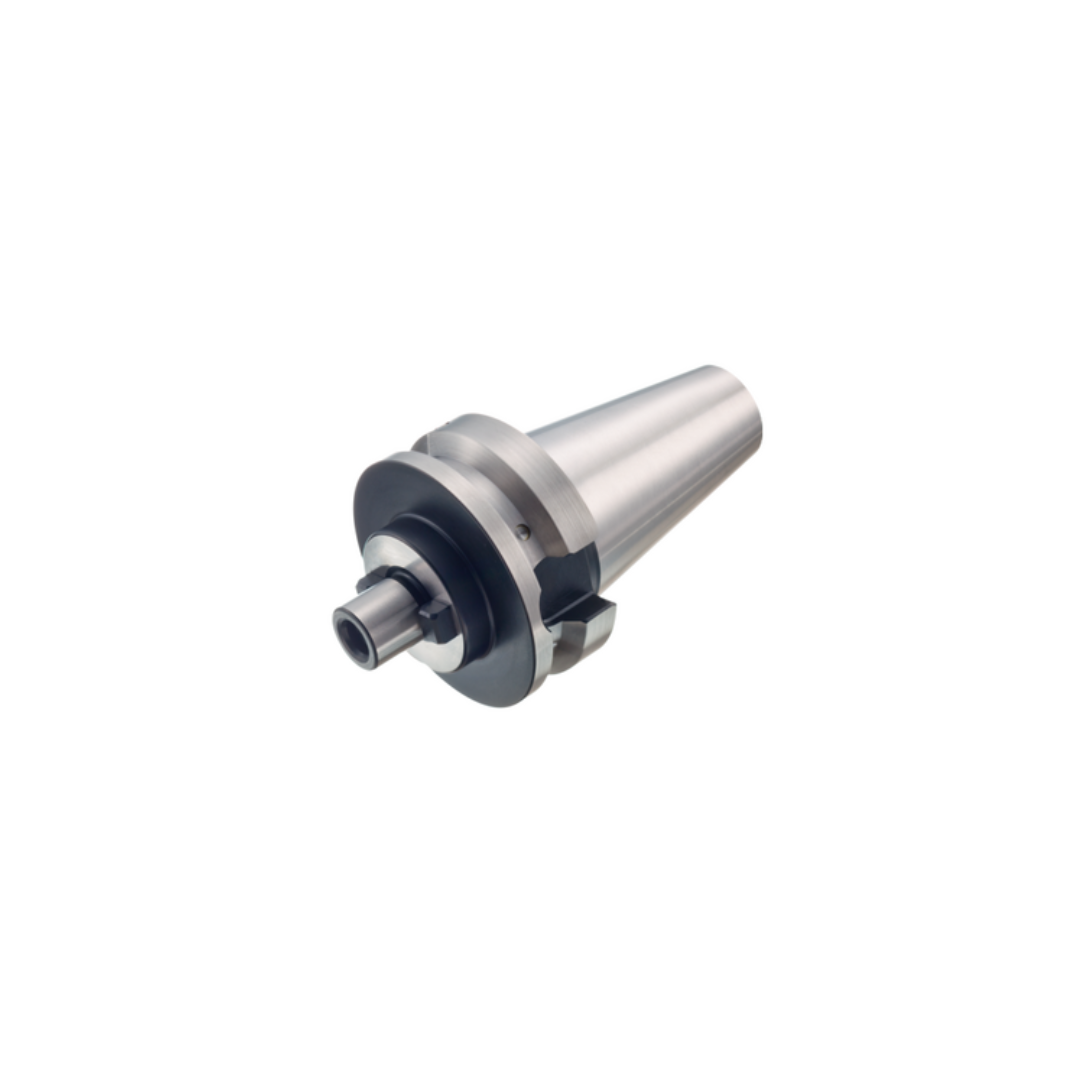

MAS-BT 403 TO ARBOR ADAPTOR BRAND SANDVIK A2B05-40 22 035

MAS-BT 403 TO ARBOR ADAPTOR BRAND SANDVIK A2B05-40 22 035

Connection - machine side(ADINTMS): MAS-BT403 -AD/B central/flange coolant - BT40
Connection - workpiece side (ADINTWS)
Arbor -ISO 6462 -A/B (center bolt/washer) -metric: 22
Coolant entry style(CNSC): decentral over flange and axial
Coolant exit style(CXSC): axial concentric on circle
Coolant pressure(CP): 80 bar
Data chip pocket (DCP): Yes
Data chip pocket size(DCPS): Dia.=10 mm/Height=4,5 mm
Functional diameter(DFC): 44.45 mm
Connection retention knob thread size(CRKS): Metric M16
Connection diameter workpiece side(DCONWS): 22 mm
Kappa (z-axis rot)(KAP): 0°
Functional length(LF): 35 mm
Body diameter(BD_1): 48 mm
Body diameter(BD_2): 63 mm
Body length(LB_1): 6 mm
Body length(LB_2): 35 mm
Body half taper angle(BHTA_1): 0°
Body half taper angle(BHTA_2): 0°
Torque(TQ): 45 Nm
Rotational speed maximum(RPMX): 18,000 1/min
Body material (BMC): Steel
Balancing method code(BLMC): Balancing by design
