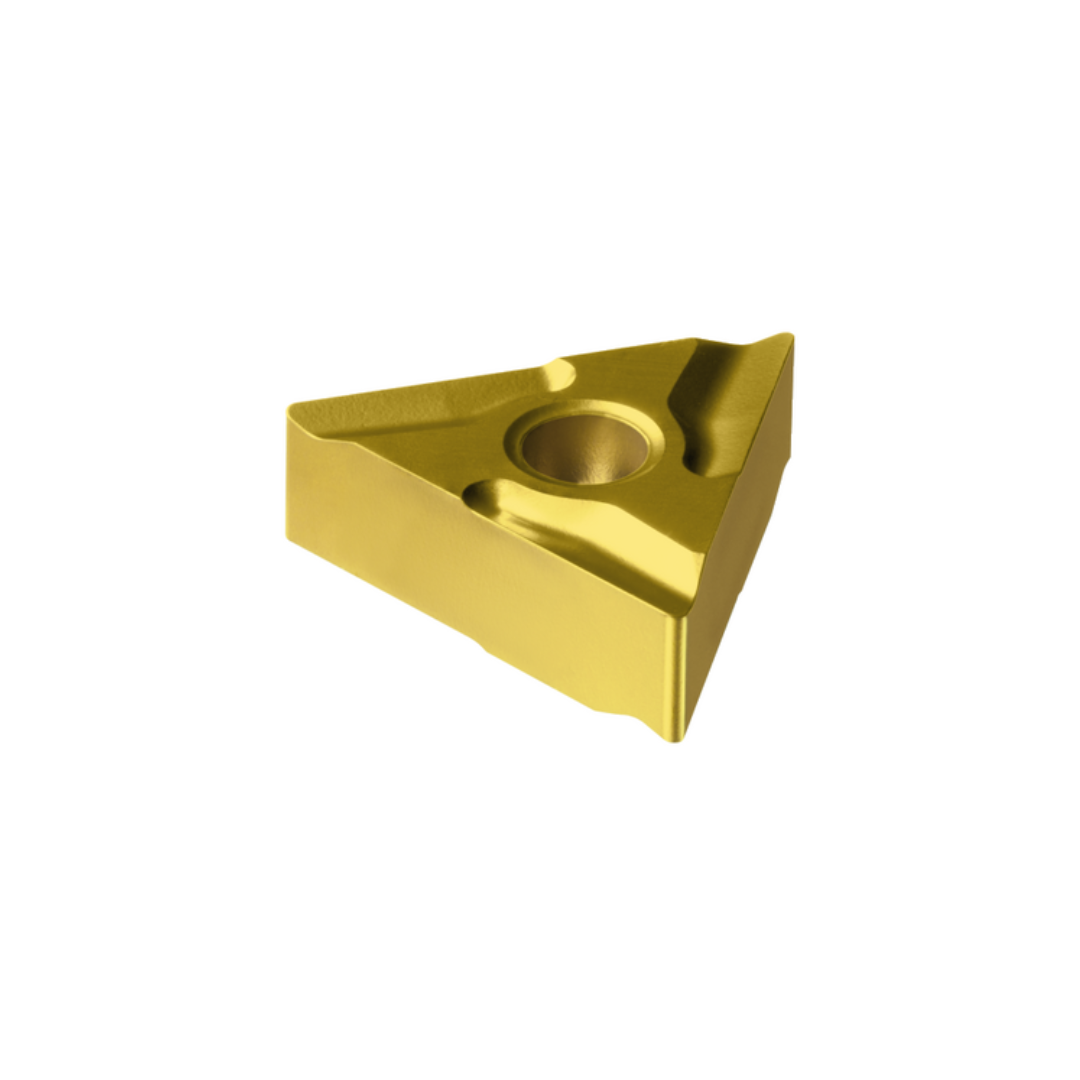

SANDVIK INSERT FOR TURNING TNMG 16 04 08R-K 1525

INSERT FOR TURNING BRAND SANDVIK TNMG 16 04 08R-K 1525

Workpiece material(s)(TMC1ISO): PMK
Chip breaker(CBMD): K
Operation type (CTPT): finishing
Insert mounting style code (metric)(IFS): Cylindrical fixing hole
Fixing hole diameter(D1): 3.81 mm
Insert size and shape (CUTINT_SIZESHAPE): TN1604
Cutting edge count(CEDC): 6
Inscribed circle diameter(IC): 9.525 mm
Insert shape code(SC): Triangular
Cutting edge effective length(LE): 14.5418 mm
Corner radius (RE): 0.7938 mm
Grade (GRADE): 1525
Substrate(SUBSTRATE): HC
Coating(COATING): PVD TiCN+TiN
Insert thickness(S): 4.7625 mm
Clearance angle major(AN): 0 °

Note:
1. Price shown is per unit.
2. Minimum order 10 pcs per box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
