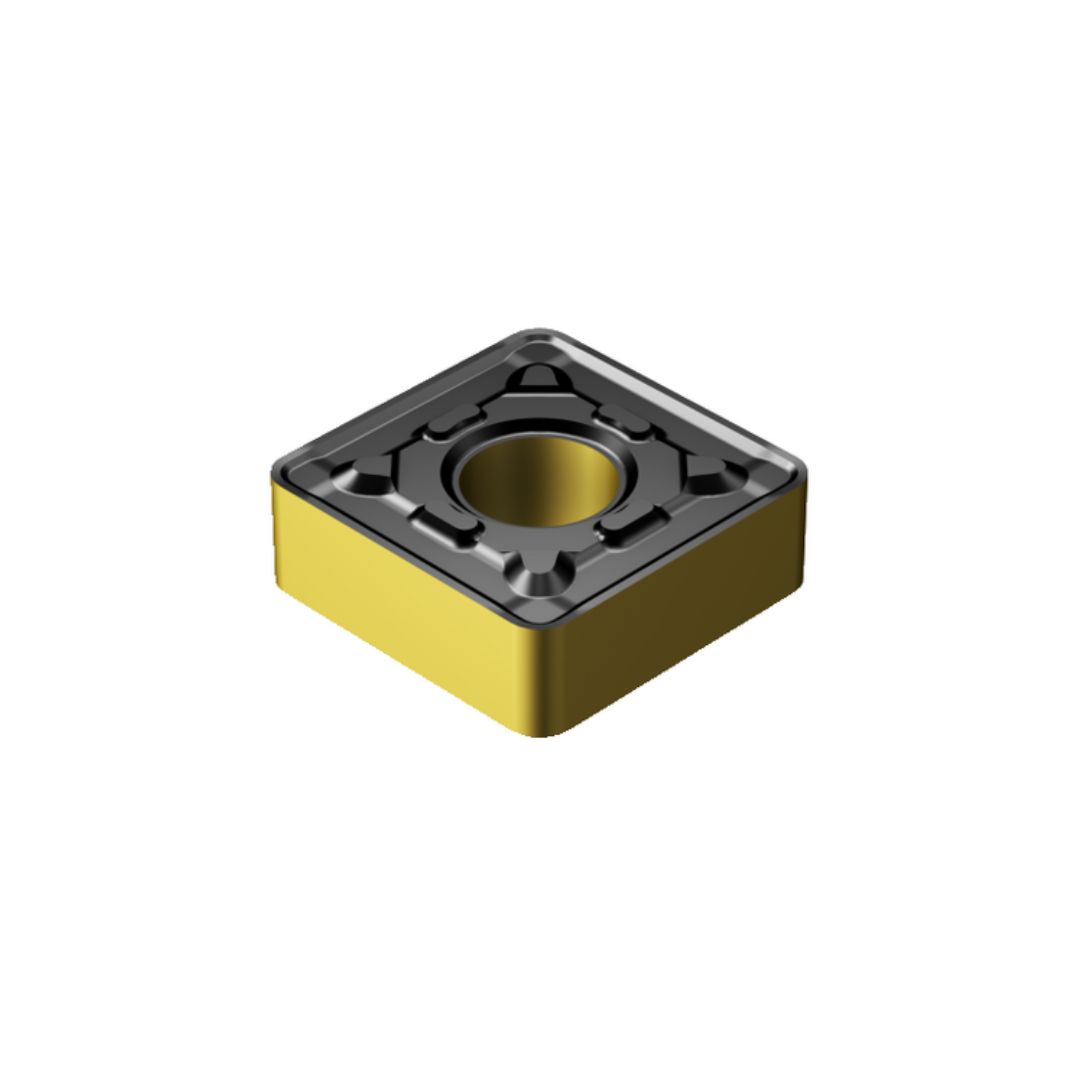

INSERT FOR TURNING BRAND SANDVIK SNMG 12 04 08-PR 4425

INSERT FOR TURNING BRAND SANDVIK SNMG 12 04 08-PR 4425

Workpiece material(s)(TMC1ISO): PK
Chip breaker(CBMD): PR
Fixing hole diameter(D1): 5.156 mm
Insert size and shape (CUTINT_SIZESHAPE): SN1204
Cutting edge count(CEDC): 8
Inscribed circle diameter(IC): 12.7 mm
Insert shape code(SC): Square
Cutting edge effective length(LE): 11.9 mm
Corner radius (RE): 0.7938 mm
Grade (GRADE): 4425
Substrate(SUBSTRATE): HC
Coating(COATING): CVD TiCN+Al2O3+TiN
Insert thickness(S): 4.7625 mm
Clearance angle major(AN): 0°
Insert seat(SSC_M): 12
Insert seat size code imperial view(SSC_N): 1/2

Packaging: 1 Box contains 10 pcs

*Authorized Sandvik Coromant Distributor
