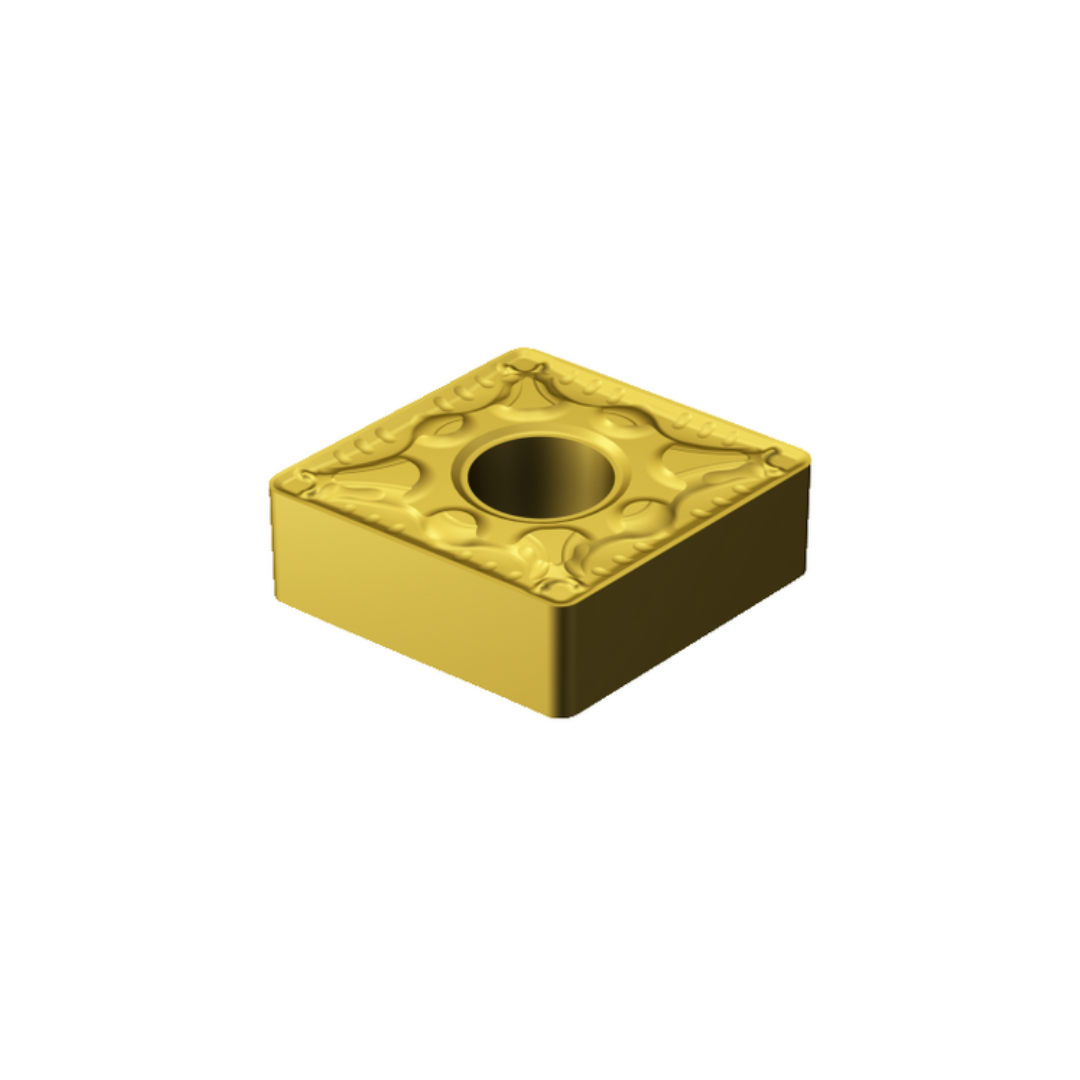

SANDVIK INSERT FOR TURNING CNMG 12 04 08-PM 1525

INSERT FOR TURNING BRAND SANDVIK CNMG 12 04 08-PM 1525

Workpiece material(s)(TMC1ISO): PMK
Chip breaker(CBMD): M
Operation type (CTPT): pre-machining with demand on surface
Insert mounting style code (metric)(IFS): Cylindrical fixing hole
Fixing hole diameter(D1): 5.156 mm
Insert size and shape (CUTINT_SIZESHAPE): CN1204
Cutting edge count(CEDC): 4
Inscribed circle diameter(IC): 12.7 mm
Insert shape code(SC): Rhombic 80
Cutting edge effective length(LE): 12.0959 mm
Corner radius (RE): 0.7938 mm
Grade (GRADE): 1525
Substrate(SUBSTRATE): HC
Coating(COATING): PVD TiCN+TiN
Insert thickness(S): 4.7625 mm
Clearance angle major(AN): 0°

Note:
1. Price shown is per unit.
2. Minimum order 10 pcs per box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
