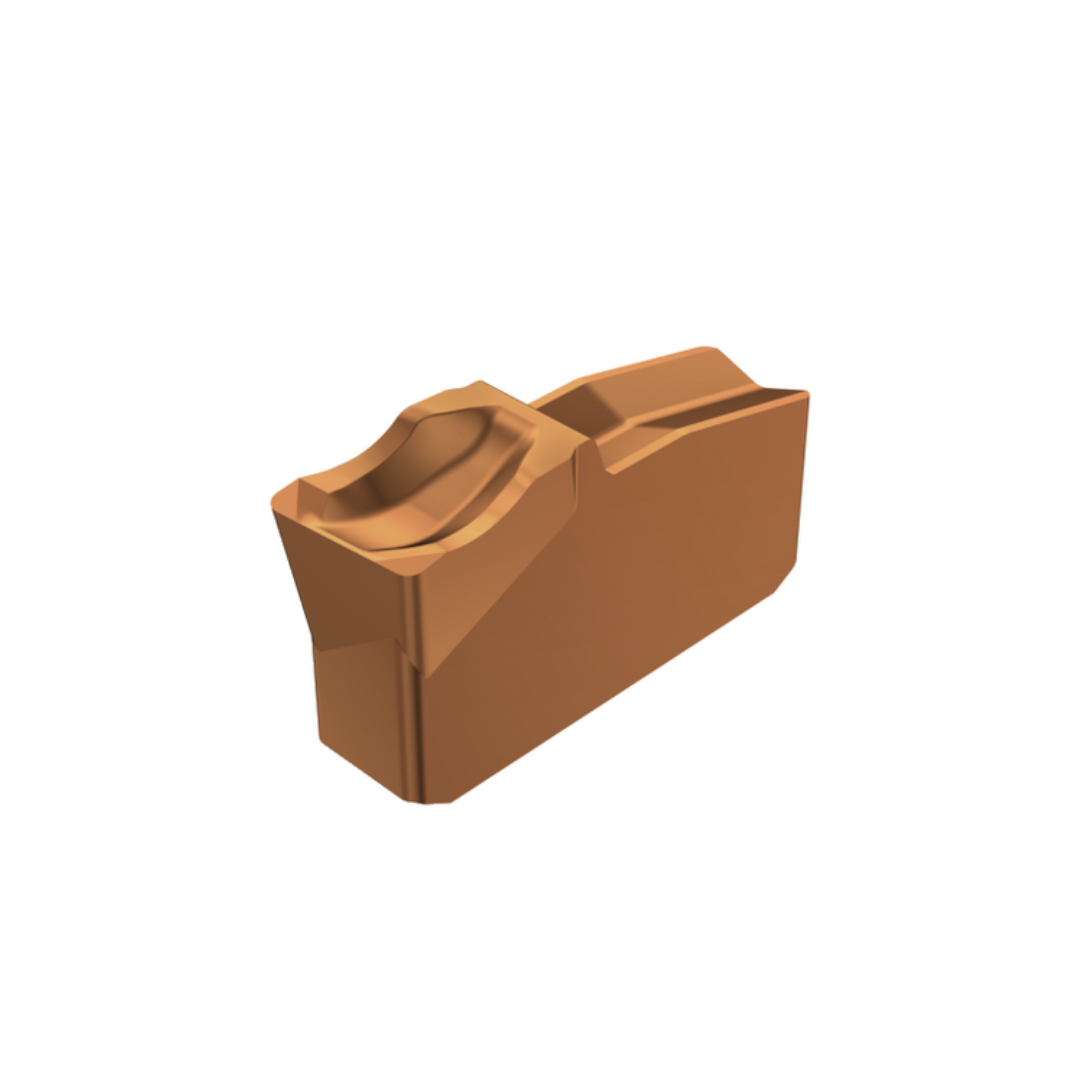

INSERT FOR PARTING BRAND SANDVIK R151.2-300 05-4E 1125

INSERT FOR PARTING BRAND SANDVIK R151.2-300 05-4E 1125

Workpiece material(s)(TMC1ISO): PMKNS
Chip breaker(CBMD): 4E
Operation type (CTPT): roughing
Insert mounting style code (metric)(IFS): Concave prismatic section
Insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 30
Cutting edge count(CEDC): 1
Insert seat(SSC_M): 30
Cutting width (CW): 3 mm
Cutting width lower tolerance(CWTOLL): 0 mm
Cutting width upper tolerance(CWTOLU): 0.25 mm
Corner radius left(REL): 0.3 mm
Corner radius right(RER): 0.3 mm
Corner radius lower tolerance(RETOLL): -0.1 mm
Corner radius upper tolerance(RETOLU): 0.1 mm
Major right hand cutting edge angle(PSIRR): 5 °
Machine side body angle(BAMS): 0 °
Grade (GRADE): 1125
Coating(COATING):PVD TiAlN
Insert thickness(S):6.787 mm
Clearance angle major(AN): 7°

Packaging: 1 Box contains 10 pcs
