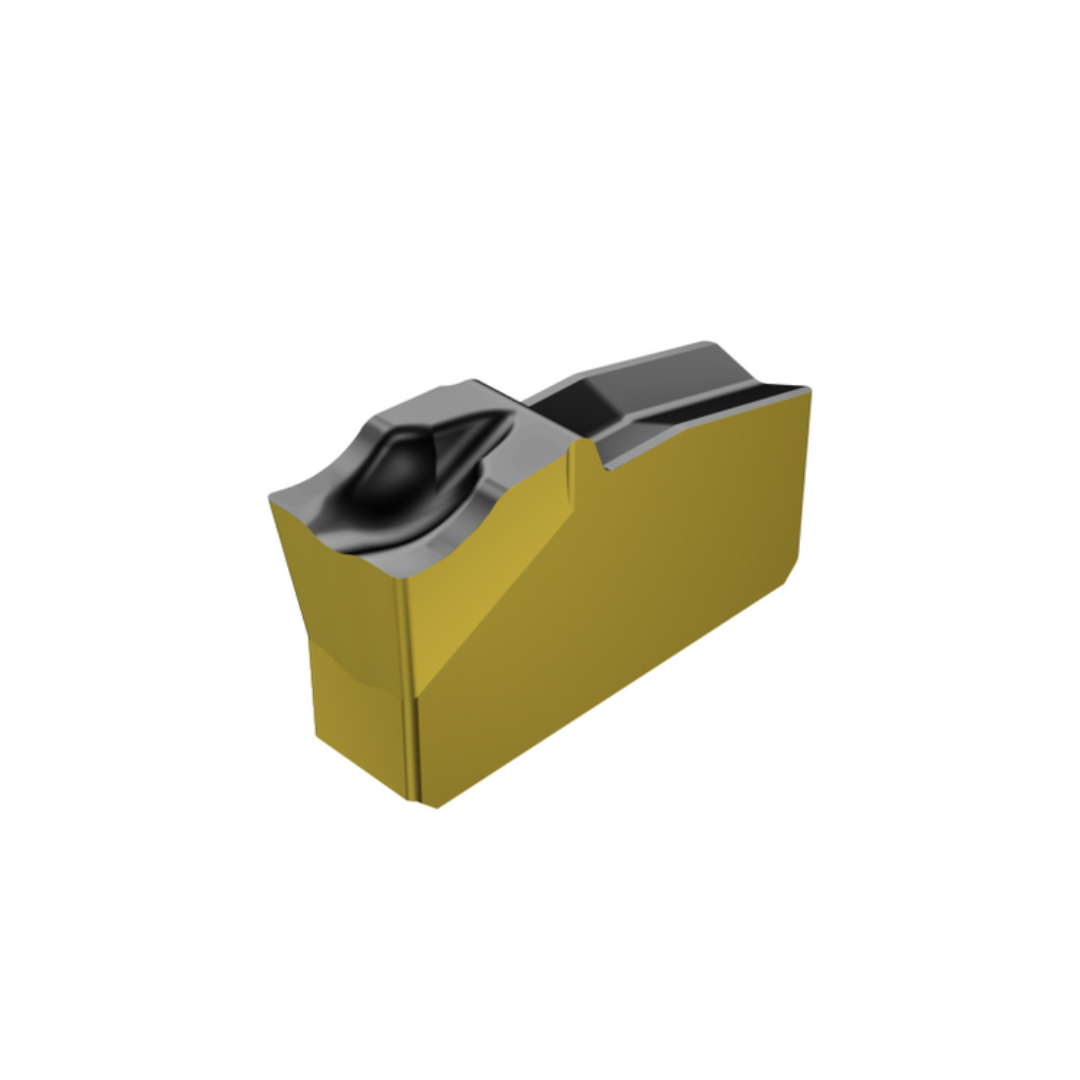

SANDVIK INSERT FOR PARTING N151.2-400-5E 4225

INSERT FOR PARTING BRAND SANDVIK N151.2-400-5E 4225

Workpiece material(s)(TMC1ISO): PK
Chip breaker(CBMD): 5E
Insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 40
Cutting edge count(CEDC): 1
Insert seat(SSC_M): 40
Cutting width (CW): 4 mm
Cutting width lower tolerance(CWTOLL): 0 mm
Cutting width upper tolerance(CWTOLU): 0.25 mm
Corner radius left(REL): 0.2 mm
Corner radius right(RER): 0.2 mm
Corner radius lower tolerance(RETOLL): -0.1 mm
Corner radius upper tolerance(RETOLU): 0.1 mm
Machine side body angle(BAMS): 0°
Grade (GRADE): 4225
Coating(COATING): CVD TiCN+Al2O3+TiN
Insert thickness(S): 8.106 mm
Clearance angle major(AN): 7°
Insert seat size code imperial view(SSC_N): 40

Note:
1. Price shown is per unit.
2. Minimum order 10 pcs per box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
