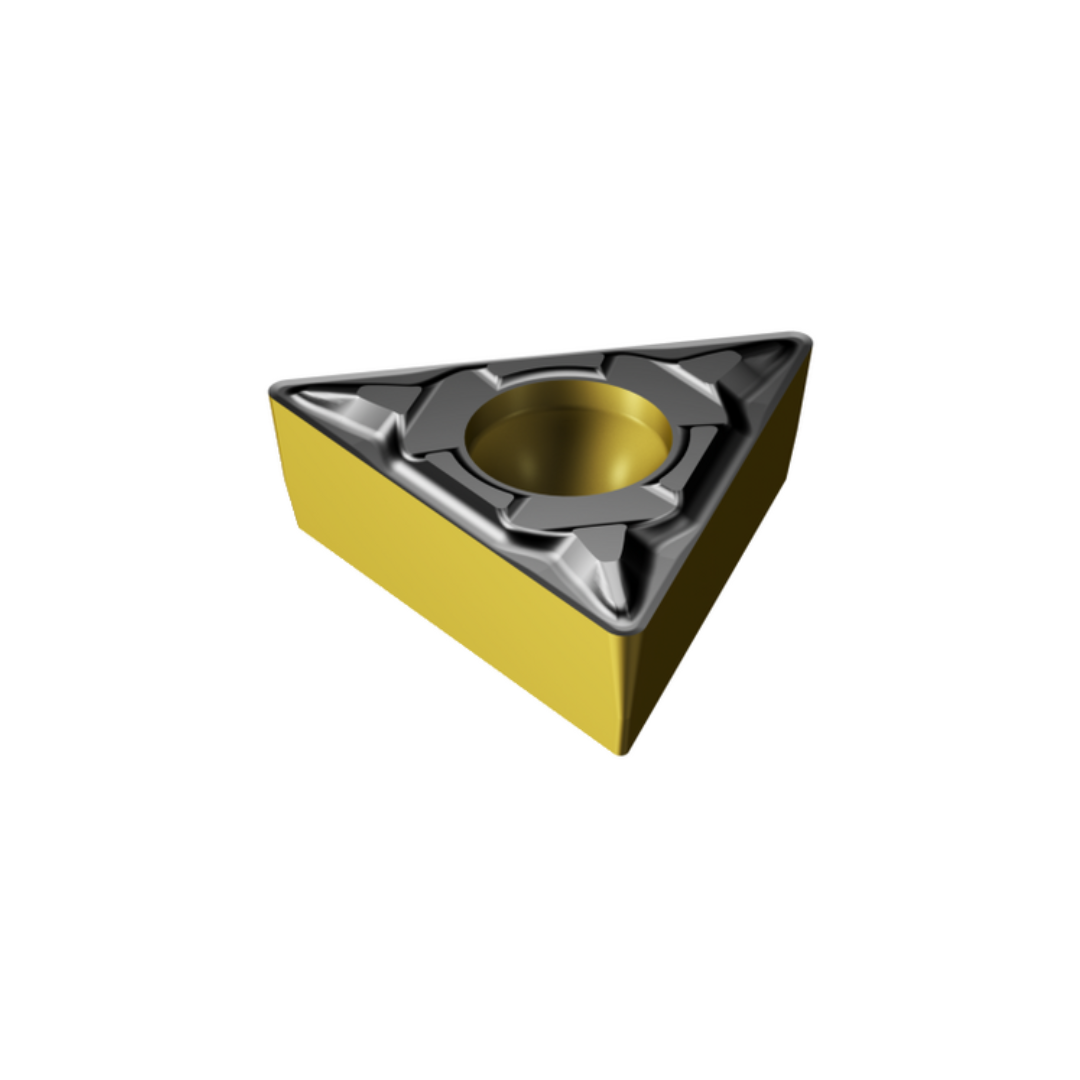

SANDVIK COROTURN INSERT FOR TURNING TPMT 11 03 02-PF 1515

COROTURN INSERT FOR TURNING BRAND SANDVIK TPMT 11 03 02-PF 1515

Workpiece material(s)(TMC1ISO): PM
Chip breaker(CBMD): PF
Fixing hole diameter(D1): 2.8 mm
Insert size and shape (CUTINT_SIZESHAPE): TP1103
Cutting edge count(CEDC): 3
Inscribed circle diameter(IC): 6.35 mm
Insert shape code(SC): Triangular
Cutting edge effective length(LE): 10.5057 mm
Corner radius (RE): 0.2 mm
Grade (GRADE): 1515
Substrate(SUBSTRATE): HC
Coating(COATING): CVD TiCN+Al2O3+TiN
Insert thickness(S): 3.175 mm
Clearance angle major(AN): 11 °

Note:
1. Price shown is per unit.
2. Minimum order 10 pcs per box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
