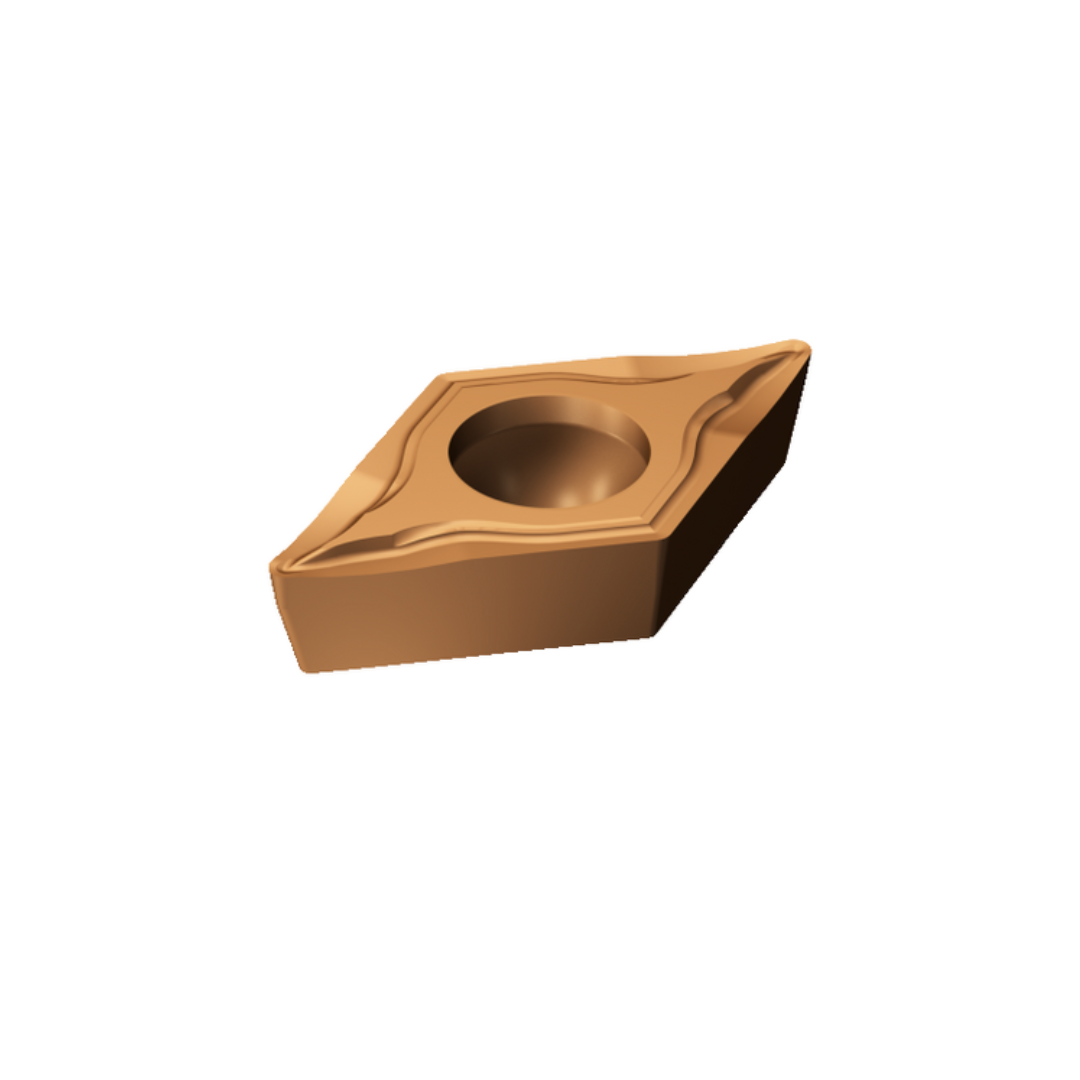

COROTURN INSERT FOR TURNING BRAND SANDVIK DCGT 11 T3 04-UM 1125

COROTURN INSERT FOR TURNING BRAND SANDVIK DCGT 11 T3 04-UM 1125

Workpiece material(s)(TMC1ISO): PMKNS
Chip breaker(CBMD): UM
Fixing hole diameter(D1): 4.4 mm
Insert size and shape (CUTINT_SIZESHAPE): DC11T3
Cutting edge count(CEDC): 2
Inscribed circle diameter(IC): 9.525 mm
Insert shape code(SC): Rhombic 55
Cutting edge effective length(LE): 11.2279 mm
Corner radius (RE): 0.3969 mm
Grade (GRADE): 1125
Substrate(SUBSTRATE): HC
Coating(COATING): PVD TiAlN+TiAlN
Insert thickness(S): 3.9688 mm
Clearance angle major(AN): 7°

Packaging: 1 Box contains 10 pcs
