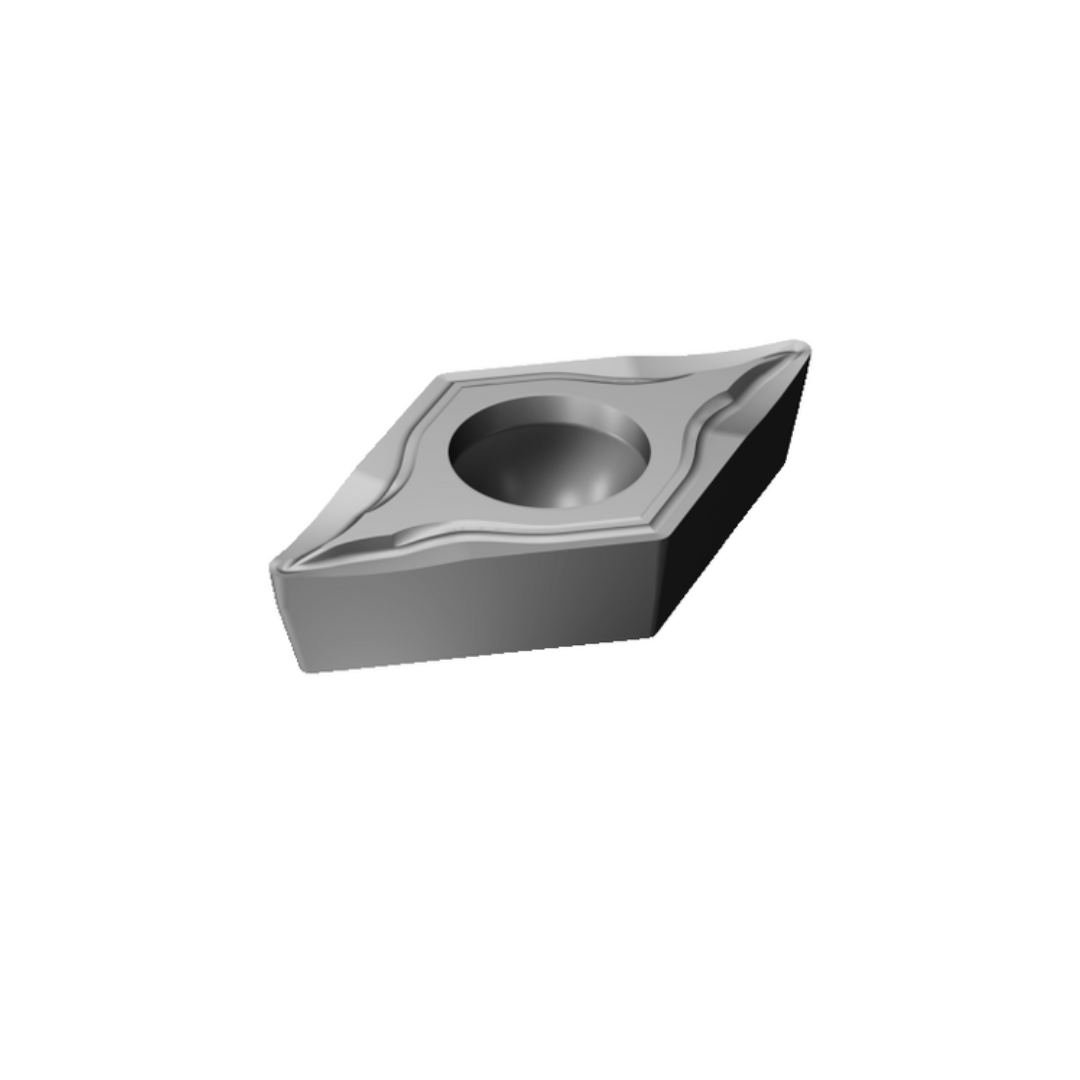

SANDVIK COROTURN INSERT FOR TURNING 11 T3 01-UM 5015

COROTURN INSERT FOR TURNING BRAND SANDVIK 11 T3 01-UM 5015

Workpiece material(s)(TMC1ISO): PK
Chip breaker(CBMD): UM
Fixing hole diameter(D1): 4.4 mm
Insert size and shape (CUTINT_SIZESHAPE): DC11T3
Cutting edge count(CEDC): 2
Inscribed circle diameter(IC): 9.525 mm
Insert shape code(SC): Rhombic 55
Cutting edge effective length(LE): 11.5279 mm
Corner radius (RE): 0.1 mm
Grade (GRADE): 5015
Substrate(SUBSTRATE): HT
Insert thickness(S): 3.9688 mm
Clearance angle major(AN): 7°
Insert seat(SSC_M): 11
Insert seat size code imperial view(SSC_N): 3/8

Note:
1. Price shown is per unit.
2. Minimum order 10 pcs per box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
