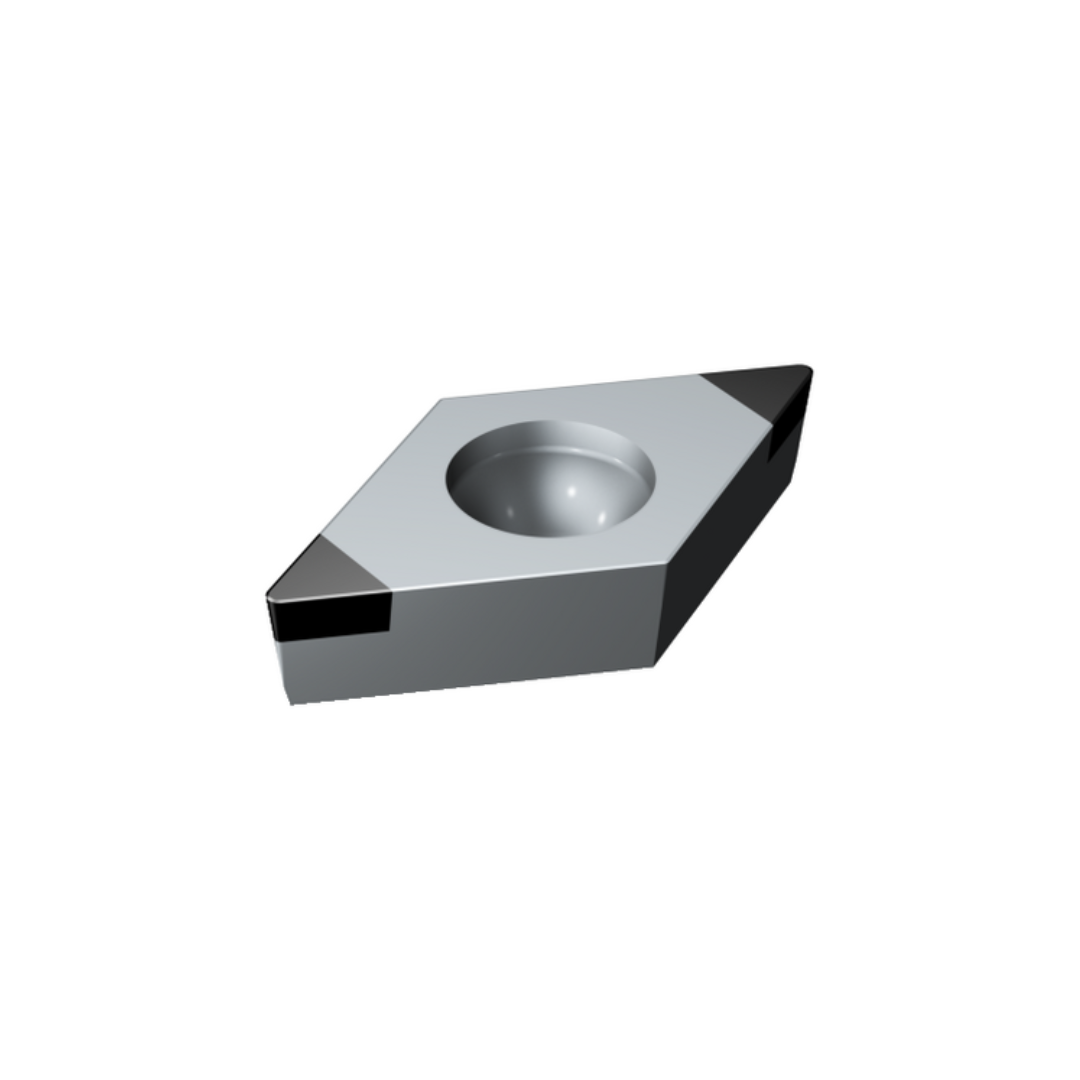

SANDVIK COROTURN INSERT FOR RUTNING DCGW070204S01020F 7125

COROTURN INSERT FOR RUTNING BRAND SANDVIK DCGW070204S01020F 7125

Workpiece material(s)(TMC1ISO): H
Fixing hole diameter(D1): 2.8 mm
Insert size and shape (CUTINT_SIZESHAPE): DC0702
Cutting edge count(CEDC): 2
Inscribed circle diameter(IC): 6.35 mm
Insert shape code(SC): Rhombic 55
Cutting edge effective length(LE): 2.9 mm
Corner radius (RE): 0.4 mm
Face land width(BN): 0.1 mm
Face land angle(GB): 20°
Insert rake angle(GAN): 0°
Grade (GRADE): 7125
Substrate(SUBSTRATE): BC
Coating(COATING): PVD AlTiCrN
Insert thickness(S): 2.3813 mm
Clearance angle major(AN): 7°
Insert seat(SSC_M): 07
Insert seat size code imperial view(SSC_N): 1/4

Note:
1. Price shown is per unit.
2. Minimum order 5 pcs per box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
