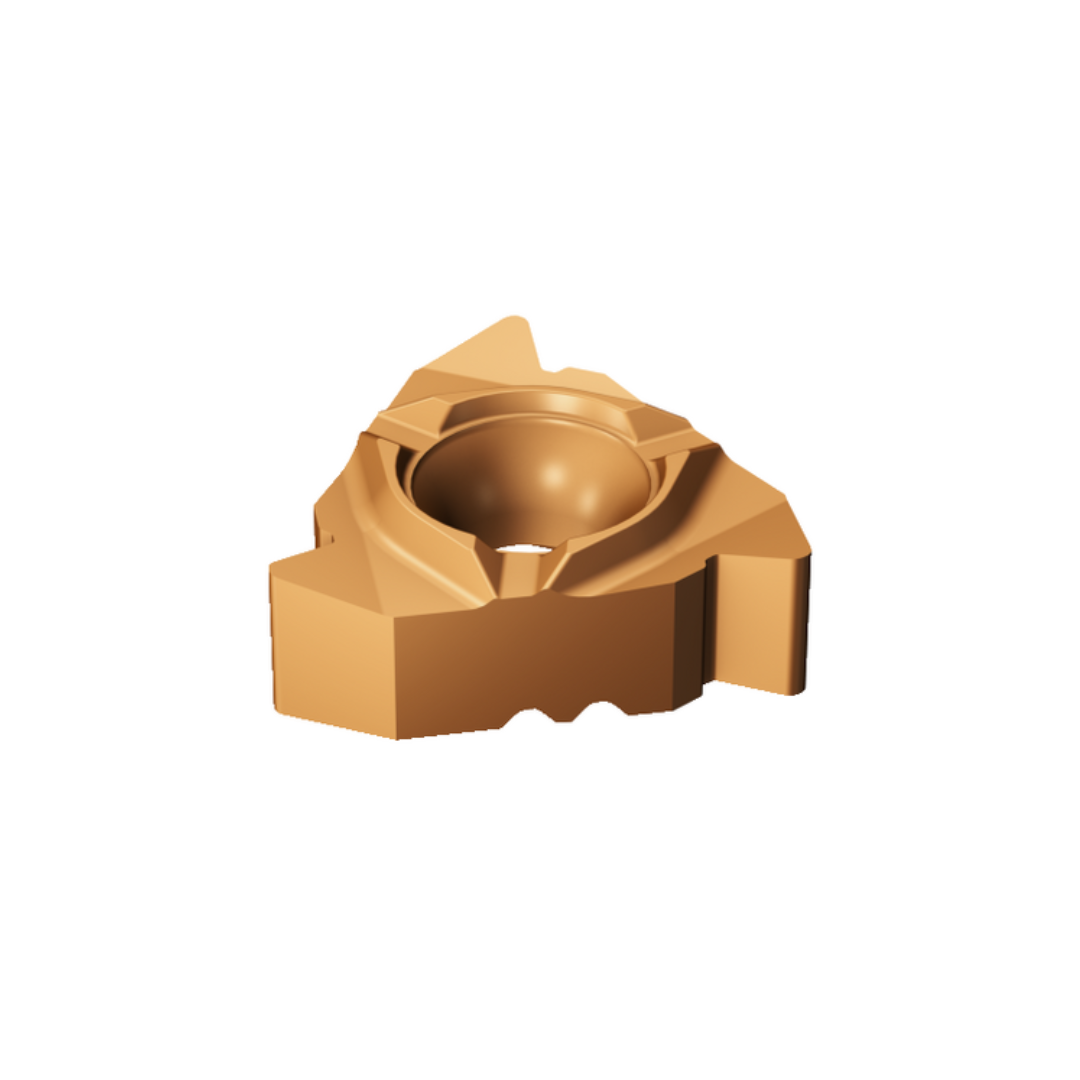

COROTHREAD INSERT FOR THREAD TURNING BRAND SANDVIK 266RL-16NT01A080M 1125

COROTHREAD INSERT FOR THREAD TURNING BRAND SANDVIK 266RL-16NT01A080M 1125

Workpiece material(s)(TMC1ISO)info: PMKNSH
Chip breaker(CBMD): A
Thread form(THFT): NPT 60°
Standard number(STDNO_1): ANSI B.1.20.1-1983
Thread type(TTP): internal
Threads per inch(TPI): 8
Thread profile type(TPT): full profile
Taper gradient(TG): 0.0625
Tooth count(NT): 1
Theoretical thread height(HA): 2.57 mm
Thread height difference(HB): 0.14 mm
Profile distance ex(PDX): 1.6 mm
Profile distance ey(PDY): 1.01 mm
Insert mounting style code (metric)(IFS): 40°-60° countersunk hole, rail bottom
Fixing hole diameter(D1): 4.4 mm
Cutting edge count(CEDC): 3
Inscribed circle diameter(IC): 9.525 mm
Grade (GRADE): 1125
Coating(COATING): PVD TiAlN
Insert thickness(S): 3.9688 mm

Packaging: 1 Box contains 10 pcs
