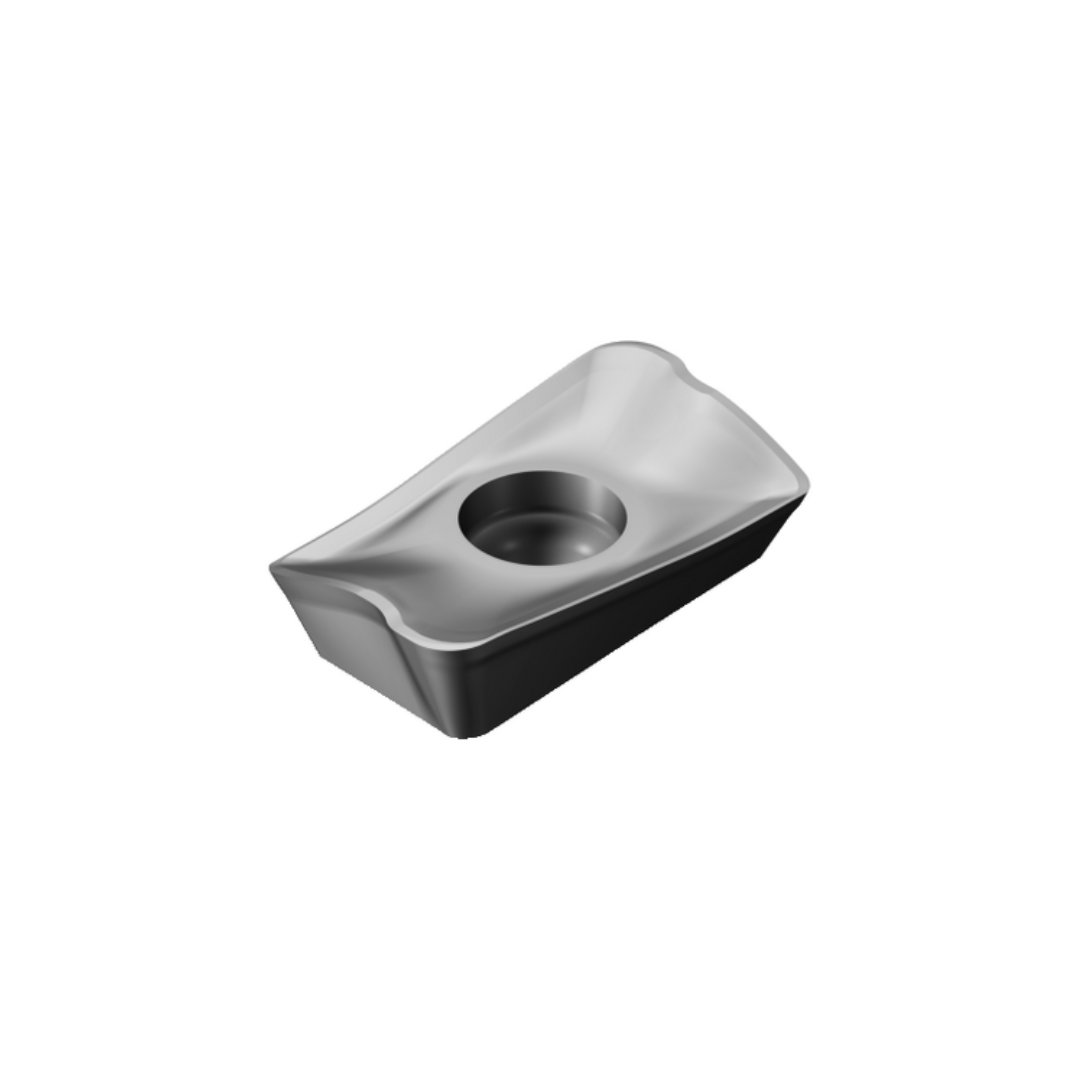

COROMILL INSERT FOR SQUARE SHOULDER MILLING R390-17 04 08M-PM 1130

COROMILL INSERT FOR SQUARE SHOULDER MILLING R390-17 04 08M-PM 1130

Workpiece material(s)(TMC1ISO):PMNSH
Chip breaker(CBMD): PM
Fixing hole diameter(D1): 4.1 mm
Insert size and shape (CUTINT_SIZESHAPE): CoroMill 390 -1704
Cutting edge count(CEDC): 2
Insert width(W1): 9.6 mm
Insert shape code(SC): Rectangular
Cutting edge effective length(LE): 15.7 mm
Depth of cut maximum (APMX): 16 mm
Wiper edge length(BS): 1.5 mm
Corner radius (RE): 0.8 mm
Major cutting edge angle(KRINS): 90°
Face land width(BN): 0.1 mm
Face land angle(GB): 2°
Insert rake angle(GAN): 17°
Grade (GRADE): 1130
Substrate(SUBSTRATE): HC
Coating(COATING): PVD AlTiCrN
Insert thickness(S): 4.7625 mm

Packaging: 1 Box contains 10 pcs
