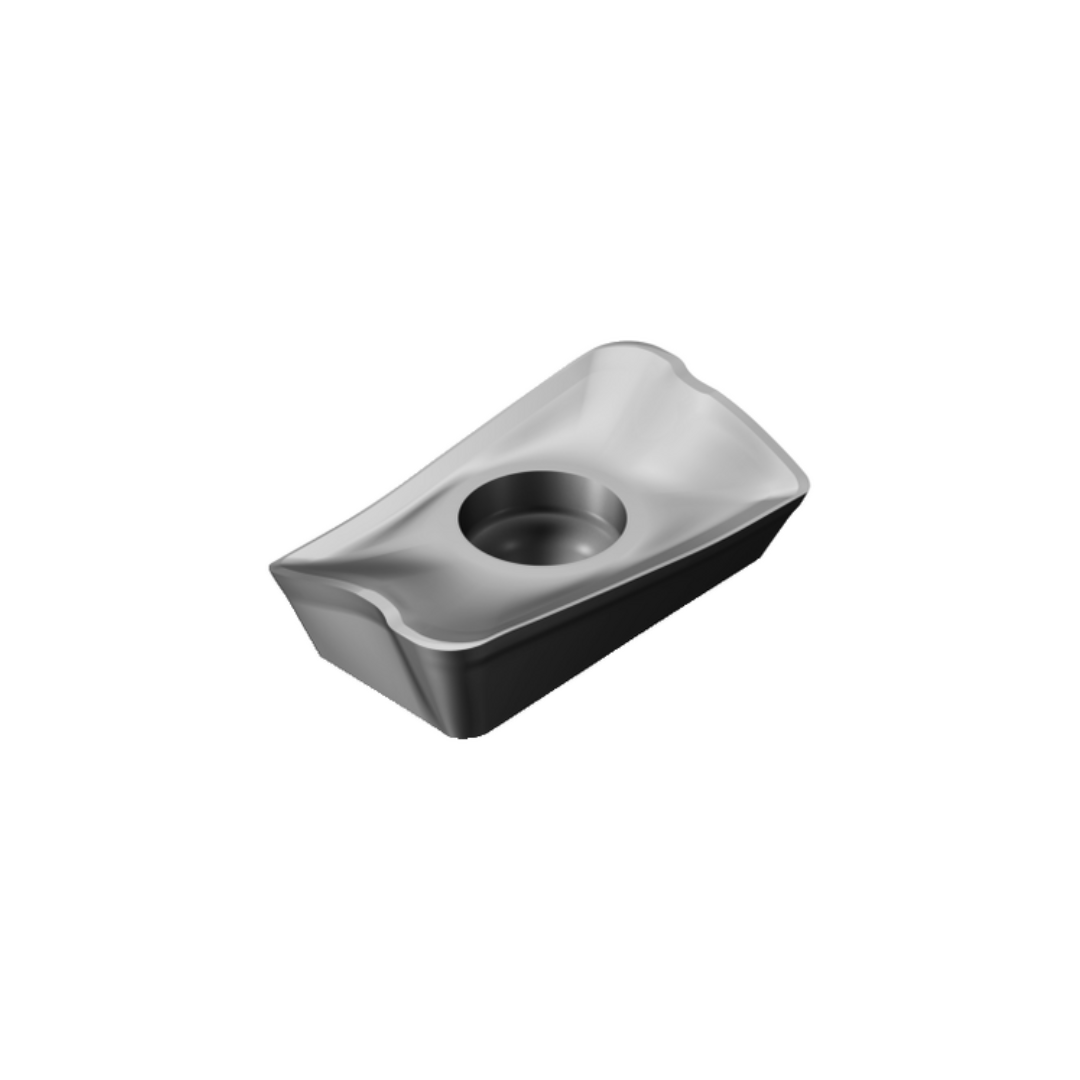

COROMILL INSERT FOR SQUARE SHOULDER MILLING BRAND SANDVIK R390-11 T3 08M-PM 1130

COROMILL INSERT FOR SQUARE SHOULDER MILLING BRAND SANDVIK R390-11 T3 08M-PM 1130

Workpiece material(s)(TMC1ISO): PMNSH
Chip breaker(CBMD): PM
Fixing hole diameter(D1): 2.8 mm
Insert size and shape (CUTINT_SIZESHAPE): CoroMill 390 -11T3
Cutting edge count(CEDC): 2
Insert width(W1): 6.8 mm
Insert shape code(SC): Rectangular
Cutting edge effective length(LE): 10 mm
Depth of cut maximum (APMX): 10 mm
Wiper edge length(BS): 1.2 mm
Corner radius (RE): 0.8 mm
Major cutting edge angle(KRINS): 90°
Face land width(BN): 0.13 mm
Face land angle(GB): 4°
Insert rake angle(GAN): 20°
Hand (HAND): Right
Grade (GRADE): 1130
Coating(COATING): PVD AlTiCrN
Insert thickness(S): 3.59 mm

Packaging: 1 Box contains 10 pcs
