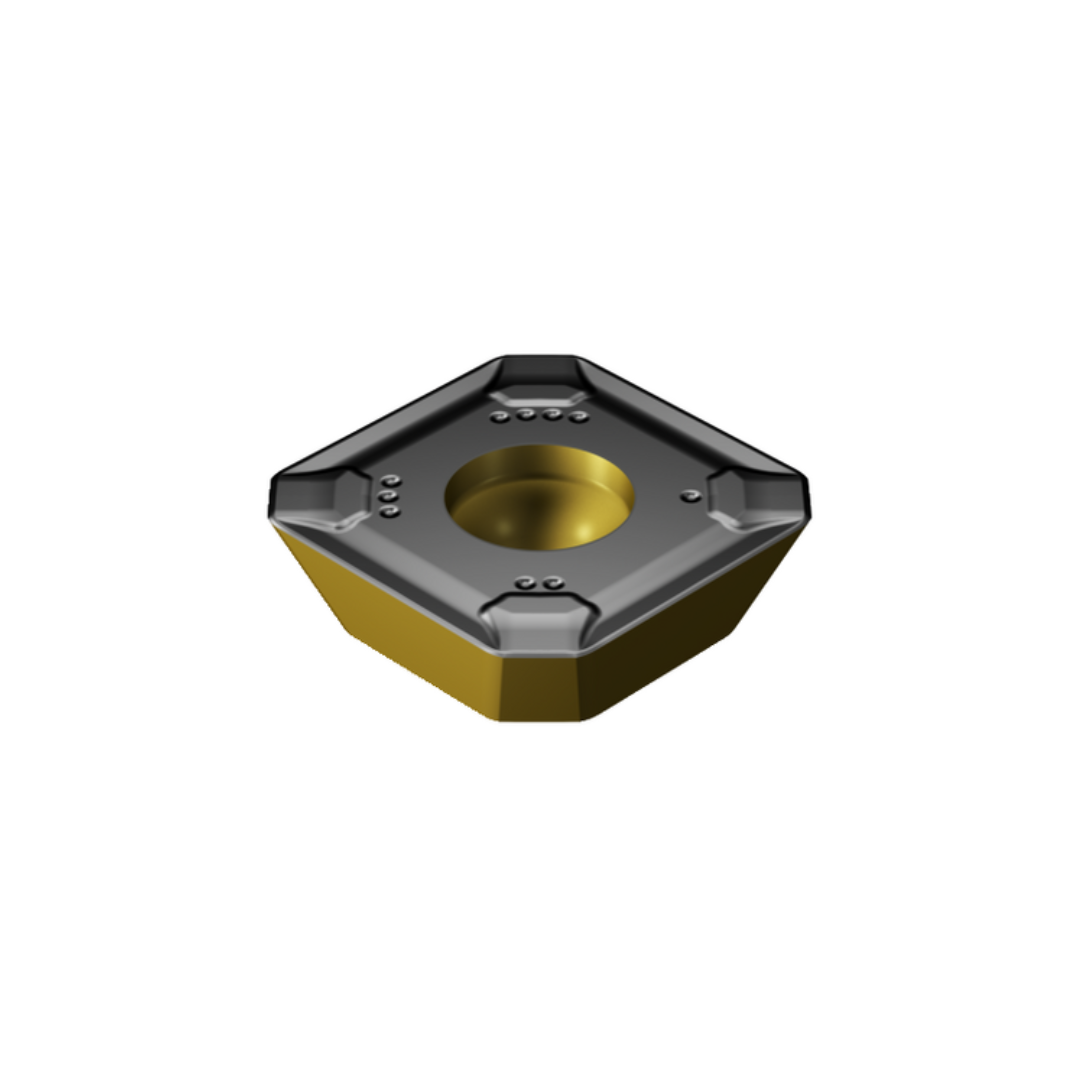

COROMILL INSERT FOR MILLING BRAND SANDVIK R245-12 T3 M-PM 4220

COROMILL INSERT FOR MILLING BRAND SANDVIK R245-12 T3 M-PM 4220

Workpiece material(s)(TMC1ISO); PKH
Chip breaker(CBMD): PM
Fixing hole diameter(D1): 4.1 mm
Insert size and shape (CUTINT_SIZESHAPE): CoroMill 245 -12T3
Cutting edge count(CEDC): 4
Inscribed circle diameter(IC): 13.4 mm
Cutting edge effective length(LE): 10 mm
Depth of cut maximum (APMX): 6.5 mm
Wiper edge length(BS): 2.05 mm
Corner radius (RE): 1.5 mm
Major cutting edge angle(KRINS): 45 °
Insert rake angle(GAN): 15 °
Grade (GRADE): 4220
Coating(COATING): CVD TiCN+Al2O3+TiN
Insert thickness(S): 3.9688 mm

Packaging: 1 Box contains 10 pcs

*Authorized Sandvik Coromant Distributor
