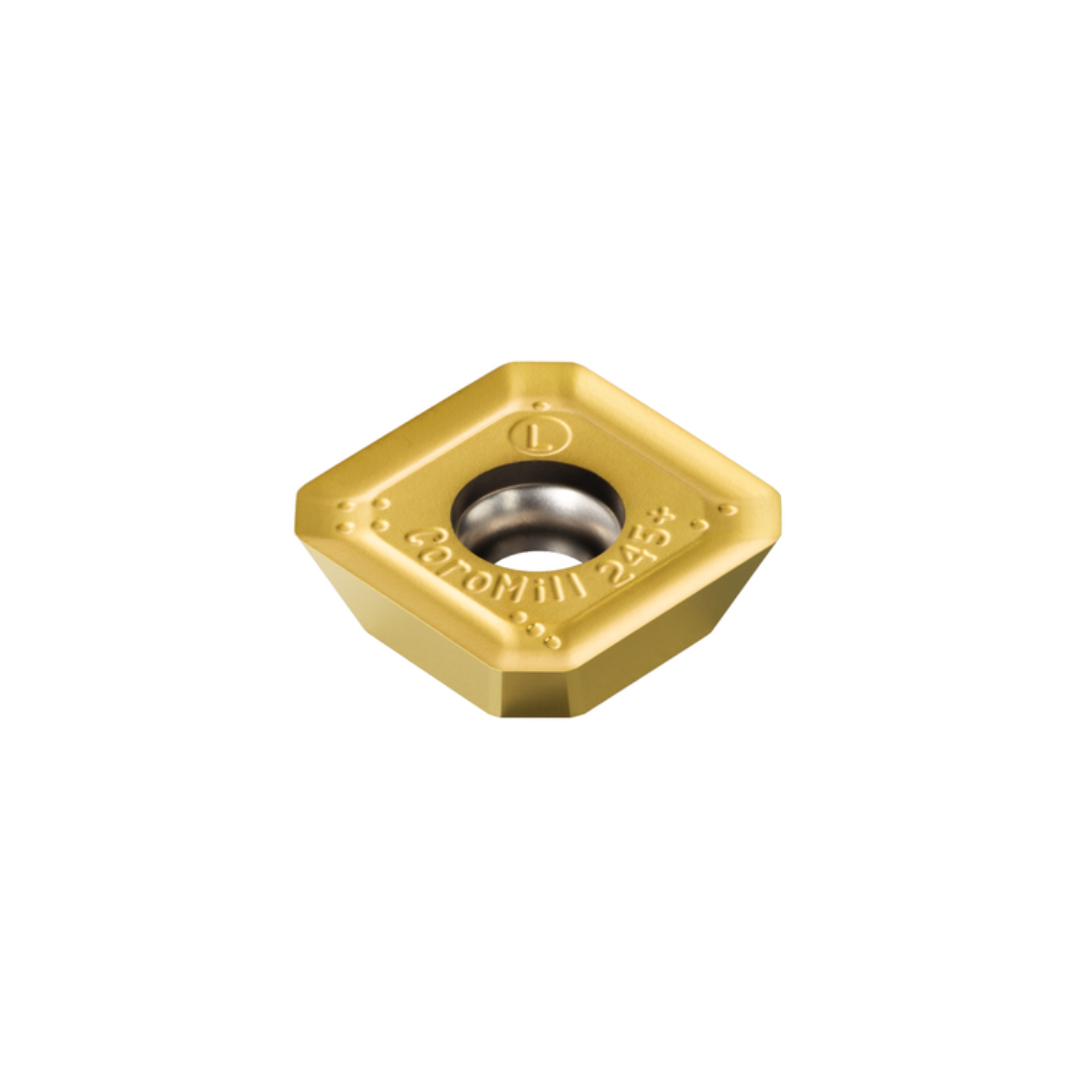

COROMILL INSERT FOR MILLING BRAND SANDVIK R245-12 T3 E-ML 2030

COROMILL INSERT FOR MILLING BRAND SANDVIK R245-12 T3 E-ML 2030

Workpiece material(s)(TMC1ISO): PMS
Chip breaker(CBMD): ML
Fixing hole diameter(D1): 4.1 mm
Insert size and shape (CUTINT_SIZESHAPE): CoroMill 245 -12T3
Cutting edge count(CEDC): 4
Inscribed circle diameter(IC): 13.4 mm
Insert shape code(SC): Square
Cutting edge effective length(LE): 10 mm
Depth of cut maximum (APMX): 6.5 mm
Wiper edge length(BS): 2.1 mm
Wiper edge radius(BSR): 200 mm
Corner radius (RE): 1.5 mm
Major cutting edge angle(KRINS): 45°
Insert rake angle(GAN): 20°
Hand (HAND): Right
Grade (GRADE): 2030
Substrate(SUBSTRATE): HC
Coating(COATING): PVD TiAlN+TiN
Insert thickness(S): 3.9688 mm
Insert seat(SSC_M): 12
Insert seat size code imperial view(SSC_N): 12

Packaging: 1 Box contains 10 pcs
