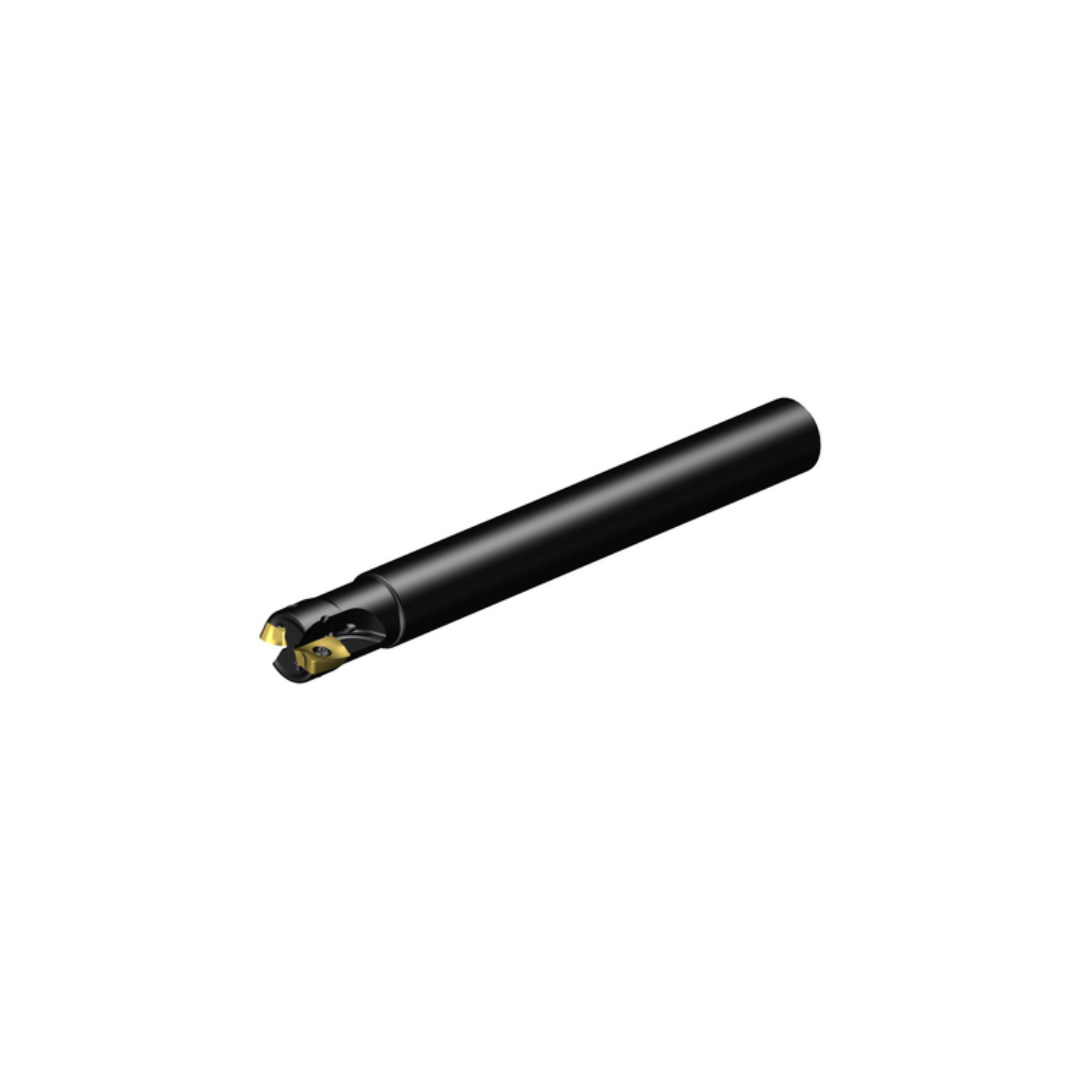

COROMILL CUTTER FOR SQUARE SHOULDER MILLING BRAND SANDVIK R390-016A16L-11L

COROMILL CUTTER FOR SQUARE SHOULDER MILLING BRAND SANDVIK R390-016A16L-11L

Tool cutting edge angle (KAPR): 90°
Cutting diameter (DC): 16 mm
Cutting item count(CICT_1): 2
Clamping type code(MTP): clamp with screw through hole
Depth of cut maximum (APMX): 10 mm
Working engagement ratio maximum(AERMX): 1
Maximum ramping angle (RMPX):10.5°
Maximum plunge depth(AZ): 1 mm
Usable length (LU): 25 mm
Peripheral effective cutting edge count(ZEFP): 2
Coolant pressure(CP): 10 bar
Connection diameter machine side(DCONMS): 16 mm
Functional length(LF): 145 mm
Radial rake angle(GAMF): -1.7 °Search Icon
Axial rake angle(GAMP): 16.1 °
Torque(TQ): 1.2 Nm
Body material (BMC): Steel
Rotational speed maximum(RPMX): 31,000 1/min
