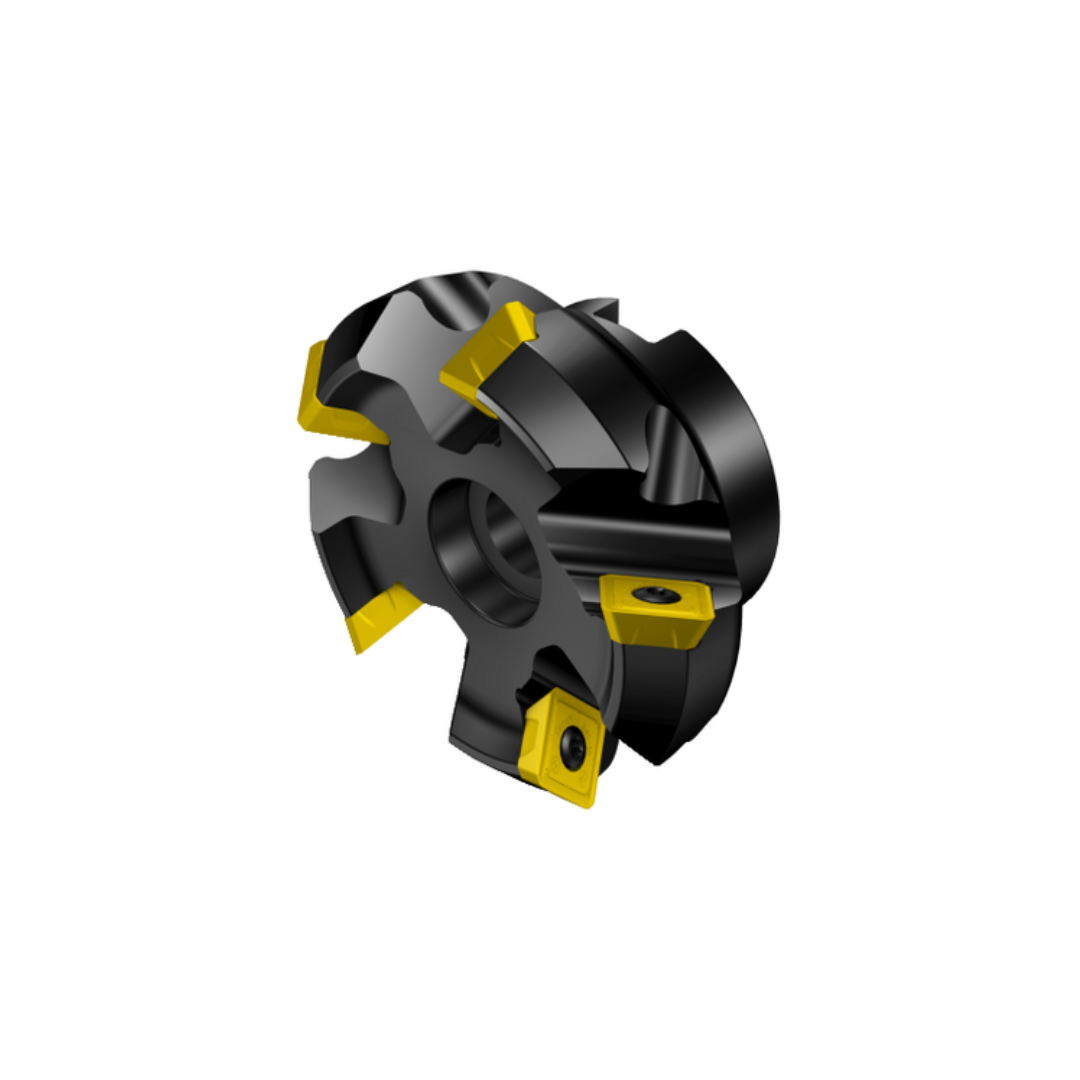

COROMILL CUTTER FOR FACE MILLING BRAND SANDVIK R245-125Q40-12L

COROMILL CUTTER FOR FACE MILLING BRAND SANDVIK R245-125Q40-12L

Tool cutting edge angle (KAPR): 45°
Cutting diameter (DC): 125 mm
Maximum cutting diameter(DCX): 137.5 mm
Cutting item count(CICT_2): 6
Clamping type code(MTP): clamp with screw through hole
Part 2 of cutting item interface identifiers(CUTINT_MASTER_2): CoroMill 245 -size 12 (R245-12T3)
Depth of cut maximum(APMX_FFW): 6 mm
Maximum ramping angle (RMPX): 0 °
Maximum plunge depth(AZ): 0 mm
Cutting pitch differential(CPDF): Yes
Peripheral effective cutting edge count(ZEFP): 6
Connection - machine side(ADINTMS): Arbor -ISO 6462 -B (cutter retaining screw) -metric: 40
Coolant entry style(CNSC): without coolant entry
Connection diameter machine side(DCONMS): 40 mm
Standard number(STDNO): ISO6462
Standard letter(STDLET): B
Functional length(LF): 63 mm
Radial rake angle(GAMF): -10.8656 °
Axial rake angle(GAMP): 22.2127 °
Torque(TQ): 3 Nm
Body material (BMC): Steel
Rotational speed maximum(RPMX): 10,100 1/min
