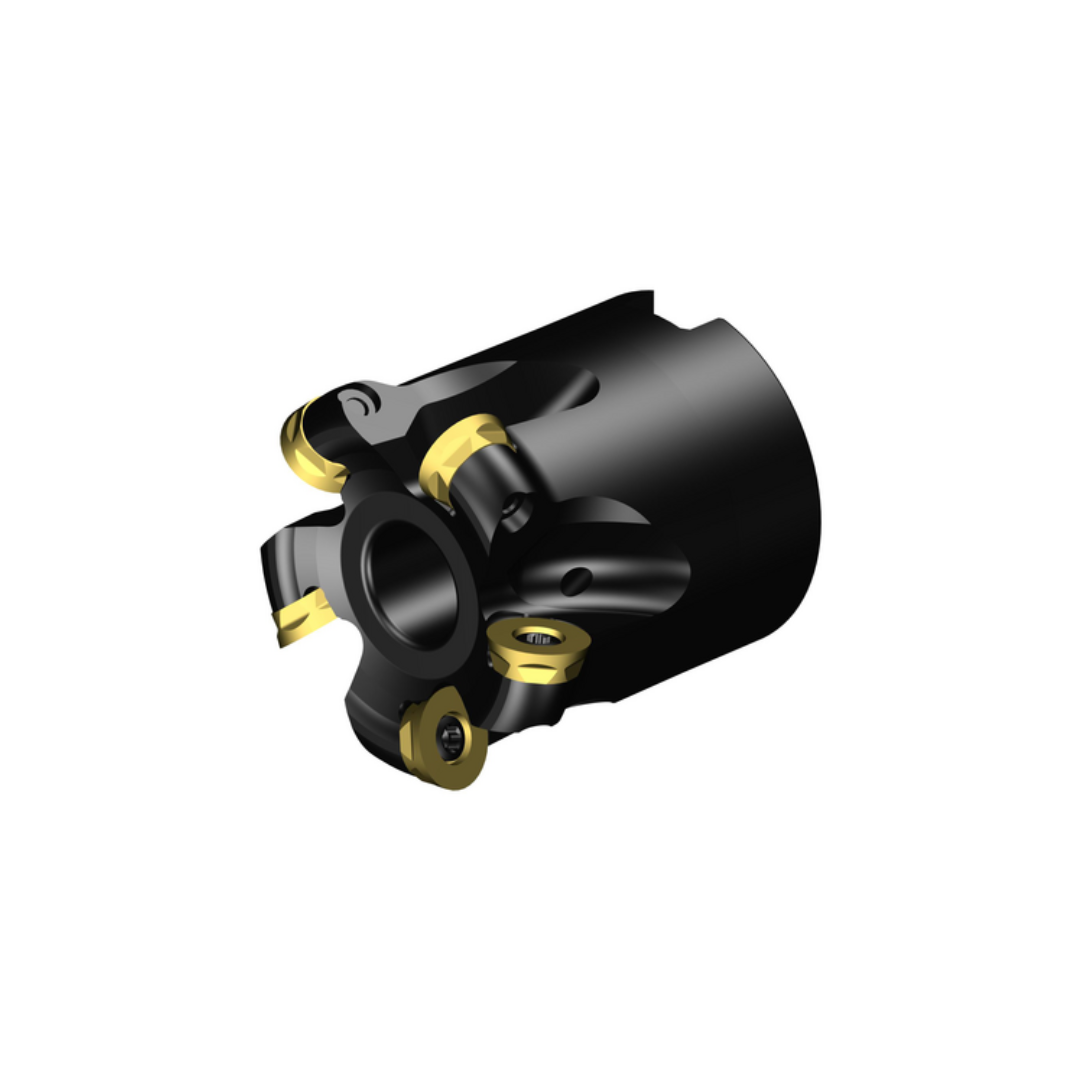

COROMILL CITTER FOR PROFILE MILLING R300-050Q22-12H

COROMILL CITTER FOR PROFILE MILLING R300-050Q22-12H

Cutting diameter (DC): 38 mm
Maximum cutting diameter(DCX): 50 mm
Cutting item count(CICT_2): 5
Clamping type code(MTP): clamp with screw through hole
Part 2 of cutting item interface identifiers(CUTINT_MASTER_2): CoroMill 300 -size 1240 (R300-1240)
Depth of cut maximum(APMX_EFW): 9 mm
Depth of cut maximum(APMX_FFW): 6 mm
Maximum ramping angle (RMPX): 5.5°
Maximum plunge depth(AZ): 3 mm
Peripheral effective cutting edge count(ZEFP): 5
Connection - machine side(ADINTMS): Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric: 22
Coolant entry style(CNSC): axial concentric entry
Coolant pressure(CP): 10 bar
Connection diameter machine side(DCONMS): 22 mm
Standard number(STDNO): ISO6462
Standard letter(STDLET): A
Functional length(LF): 50 mm
Radial rake angle(GAMF): 7°
Axial rake angle(GAMP): 0°
Torque(TQ): 3 Nm
Body material (BMC): Steel
Rotational speed maximum(RPMX): 25,000 1/min
