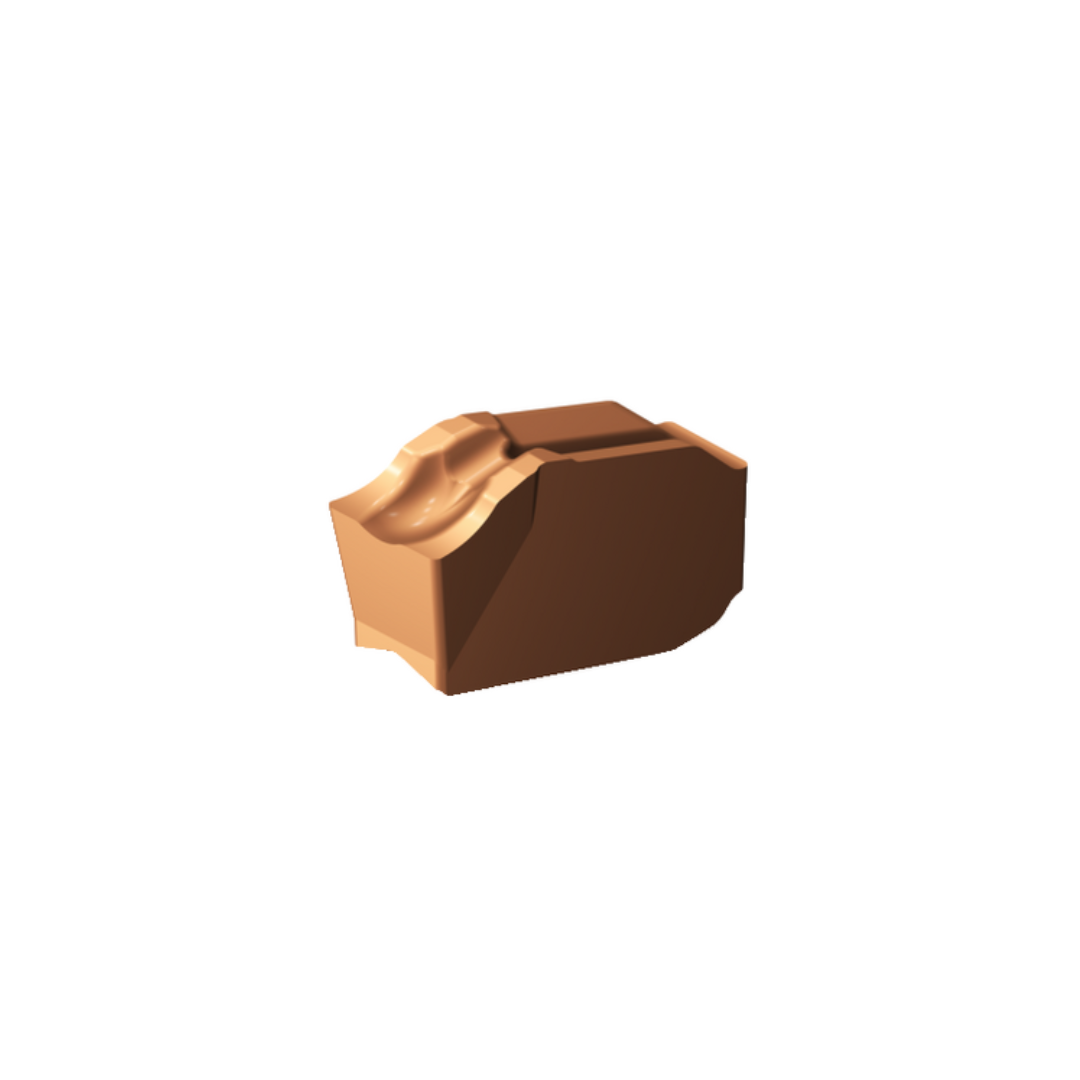

SANDVIK COROCUT INSERT FOR PARTING QD-LG-0300-0502-CM 1125

COROCUT INSERT FOR PARTING BRAND SANDVIK QD-LG-0300-0502-CM 1125

Workpiece material(s)(TMC1ISO): PMKNS
Chip breaker(CBMD): CM
Insert size and shape (CUTINT_SIZESHAPE): CoroCut QD -size G
Cutting edge count(CEDC): 1
Insert seat(SSC_M): G
Cutting width (CW): 3 mm
Cutting width lower tolerance(CWTOLL): -0.05 mm
Cutting width upper tolerance(CWTOLU): 0.05 mm
Corner radius left(REL): 0.2 mm
Corner radius right(RER): 0.2 mm
Corner radius lower tolerance(RETOLL): -0.05 mm
Corner radius upper tolerance(RETOLU): 0.05 mm
Major left hand cutting edge angle(PSIRL): 5 °
Machine side body angle(BAMS): 0°
Grade (GRADE): 1125
Coating(COATING): PVD TiAlN
Insert thickness(S): 3.1 mm
Clearance angle major(AN): 7°

Note:
1. Price shown is per unit.
2. Minimum order 10 pcs per box.
3. For further inquiries or quotation, please contact us.

*Authorized Sandvik Coromant Distributor
