CONTROL SYSTEMS TECHNOLOGY INTELLIROLL

CONTROL SYSTEMS TECHNOLOGY INTELLIROLL

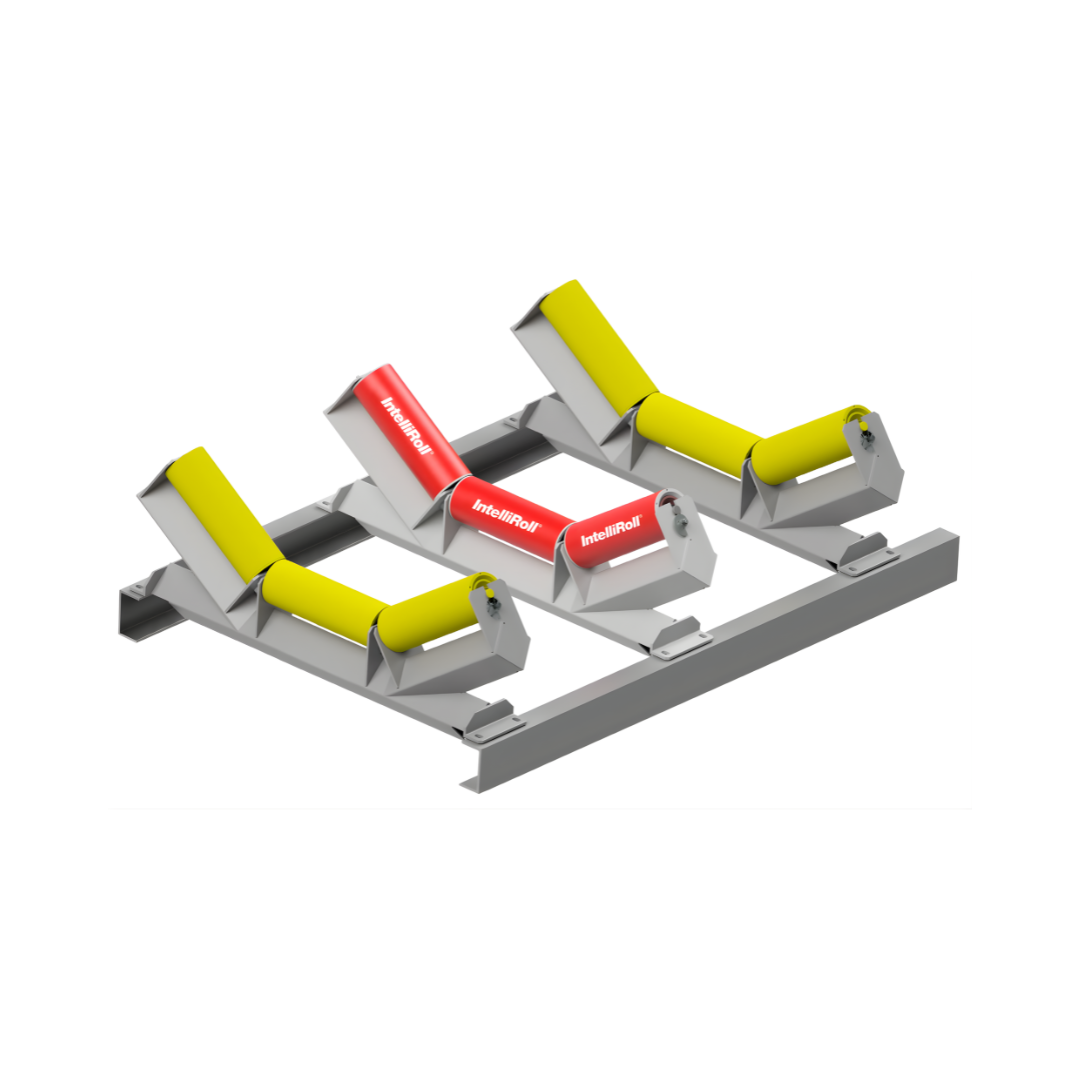

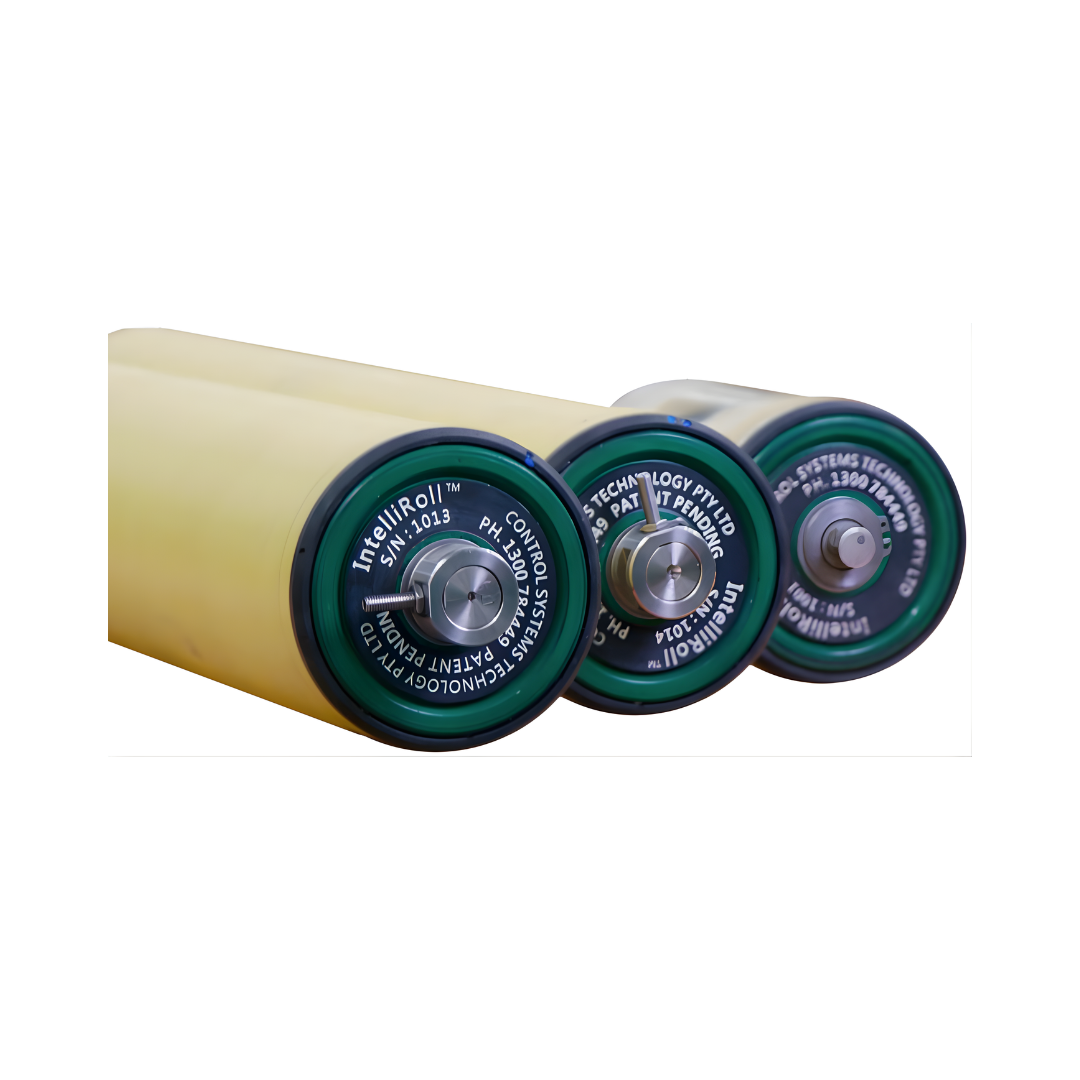

Introducing the IntelliRoll®, a groundbreaking wireless, autonomous weigh roll unit designed by Control Systems Technology. IntelliRoll replaces a standard roller with a fully integrated belt weigher—housing load cells, electronics, communications, and self-charging power inside, with no external wiring required.
The IntelliRoll® is pre-calibrated and eliminates the need for tachometers and integrators, while reducing maintenance requirements. It transmits real-time data on flow rate, speed, and tones via Wi-Fi and Bluetooth to a smartphone app, making it a game-changer in material monitoring and process control.

Technical Specifications:

• 32 Bit ARM M4 Processor
• Dual 24 bit sigma-delta ADC’s for weight measurement
• 3 Axis Accelerometer
• Temperature Sensor
• Built in Tachometer
• Energy Harvesting Generator
• Battery Operation when belt stopped (8 hours)
• Belt Speed 0.6 to 6 m/s
• Wi-fi Communication to User
• XBee Mesh network roll to roll communication
• Designed and Built in Australia
• 2% to 5% accuracy depending on application - ideal for process control applications.

*For further inquiries or quotation, please contact us.
*Authorized Control Systems Technology Distributor
